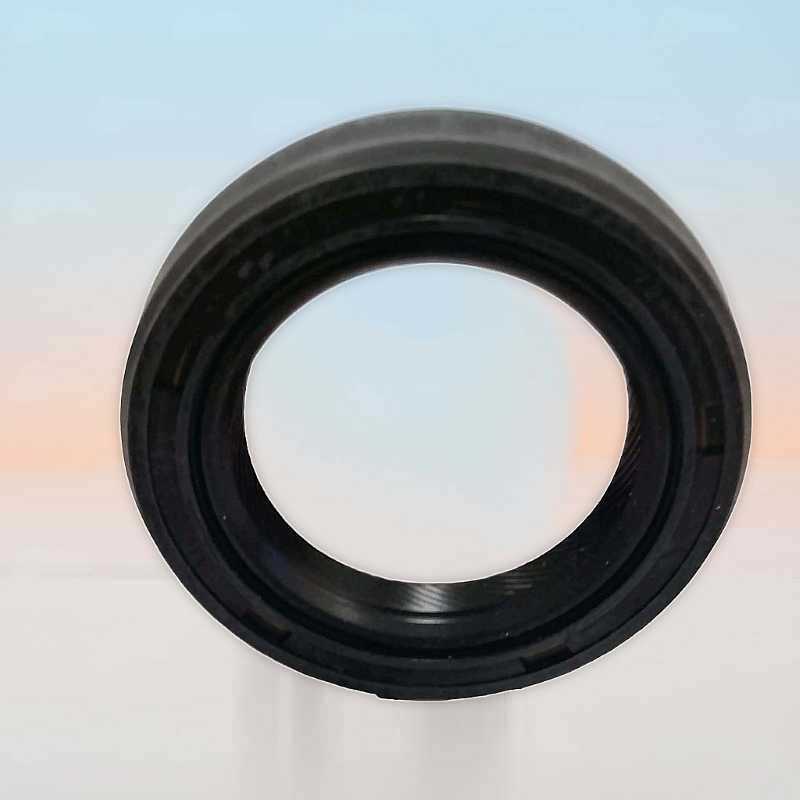

Oil Seal RICH 30x45x8 HTC3 ACM 30x45x8 HTC3 ACM RICH
zoom_out_map
Oil Seal RICH 30x45x8 HTC3 ACM 30x45x8 HTC3 ACM RICH

Oil Seal RICH 30x45x8 HTC3 ACM

Type: Double Lip Radial Seal
Model: Oil Seal RICH 30x45x8 ACM
Material: ACM Rubber
Feature: With Dust Lip
Brand: RICH
Origin: China
RICH
19017037B

Volume discounts

Quantity Unit price
10 €2.61
20 €2.48
50 €2.36
100 €2.23
€2.88
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Oil Seal RICH 30x45x8 ACM (Double Lip)

OE Reference:

  • TOYOTA: 9031130014
  • VW: J9031130014

Technical Specifications:

  • Catalog Code: 30x45x8 ACM RICH
  • Brand: RICH
  • Type: Double Lip Radial Seal
  • Inner Diameter (d): 30 mm
  • Outer Diameter (D): 45 mm
  • Height (h): 8 mm
  • Material: ACM (Polyacrylate Rubber)
  • Feature: With Dust Lip
  • Country of Origin: China

Key Performance Advantages:

  • High-Temperature ACM Resilience: The Polyacrylate (ACM) compound offers excellent resistance to heat and oxidative aging, making it ideal for engine and transmission environments with high thermal cycles.
  • Enhanced Double Lip Barrier: Equipped with a secondary dust lip, this seal provides dual protection by blocking external debris and moisture from reaching the primary sealing surface, significantly extending component life.
  • Chemical Resistance: Formulated to withstand aggressive modern engine oils and transmission fluids containing high levels of chemical additives, preventing lip hardening and leakage.
  • Precision 30mm Engineering: Specifically optimized for 30 mm shaft diameters, the spring-loaded primary lip maintains constant radial pressure to ensure 100% fluid containment under dynamic rotation.
  • Direct OEM Compliance: Precision-manufactured to match the exact technical standards of Toyota reference 9031130014 and VW J9031130014, guaranteeing a reliable, factory-standard fit.

Transparency Note: This component is manufactured under the RICH brand. The listed dimensions and references are used for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
30
Outer Diameter
45
Width
8
Weight
0,021
Compatible with Corteco
19017037B
