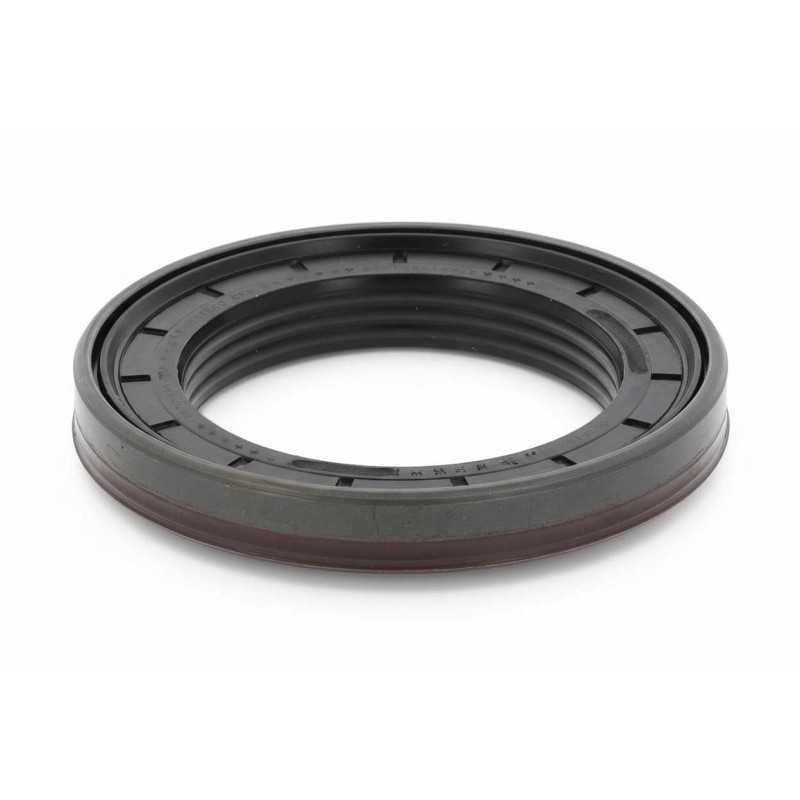

Oil Seal RICH 67 × 100 × 13/15 FPM KASSETTE
OE References:
- IVECO: 40102830, 40102833
- CORTECO: 12016648B
Technical Specifications:
- Brand: RICH
- Type: Oil seal / Shaft seal / Sealing ring (KASSETTE)
- Inner Diameter (d): 67 mm
- Outer Diameter (D): 100 mm
- Base Height (h1): 13 mm
- Total Height (h2): 15 mm
- Material: FPM Fluoroelastomer
- Temperature Range: -20°C to +200°C
- Country of Origin: China
Performance Characteristics:
- Material Type: Elastomeric sealing element based on FPM.
- Thermal Classification: High-range thermal stability aligned with FPM material properties.
- Profile Geometry: KASSETTE unitized labyrinth configuration.
- Structural Layout: Integrated internal wear sleeve with a multi-lip system for maximum exclusion of environmental contaminants.
- Dimensional Format: 67 × 100 × 13/15 mm configuration.
Transparency Note: This product is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
