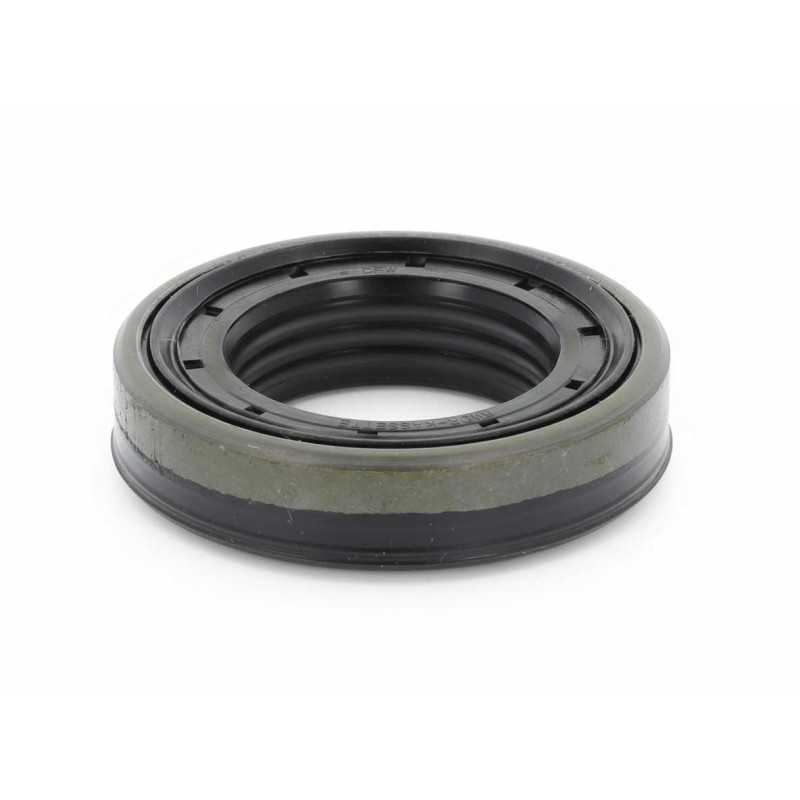

Oil Seal RICH 35 × 60 × 13/14.5 NBR KASSETTE
OE References:
- CARRARO: 130171, 730026
- DANA: 51816
- DEUTZ-FAHR / HÜRLIMANN / LAMBORGHINI / SAME: 215291150
- CORTECO: 12017029B
Technical Specifications:
- Brand: RICH
- Type: Oil seal / Shaft seal / Sealing ring (KASSETTE)
- Inner Diameter (d): 35 mm
- Outer Diameter (D): 60 mm
- Base Height (h1): 13 mm
- Total/Inner Ring Height (h2): 14.5 mm
- Material: NBR (Nitrile Butadiene Rubber)
- Weight: 0.07 kg
- Temperature Range: -30°C to +100°C
- Country of Origin: China
Performance Characteristics:
- Material Type: Elastomeric sealing element based on NBR.
- Thermal Classification: Operating range consistent with NBR material specifications.
- Profile Geometry: KASSETTE unitized labyrinth configuration.
- Structural Layout: Integrated internal wear sleeve with a multi-lip system for exclusion of environmental contaminants in agricultural axle applications.
- Dimensional Format: 35 × 60 × 13/14.5 mm configuration.
Transparency Note: This product is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
