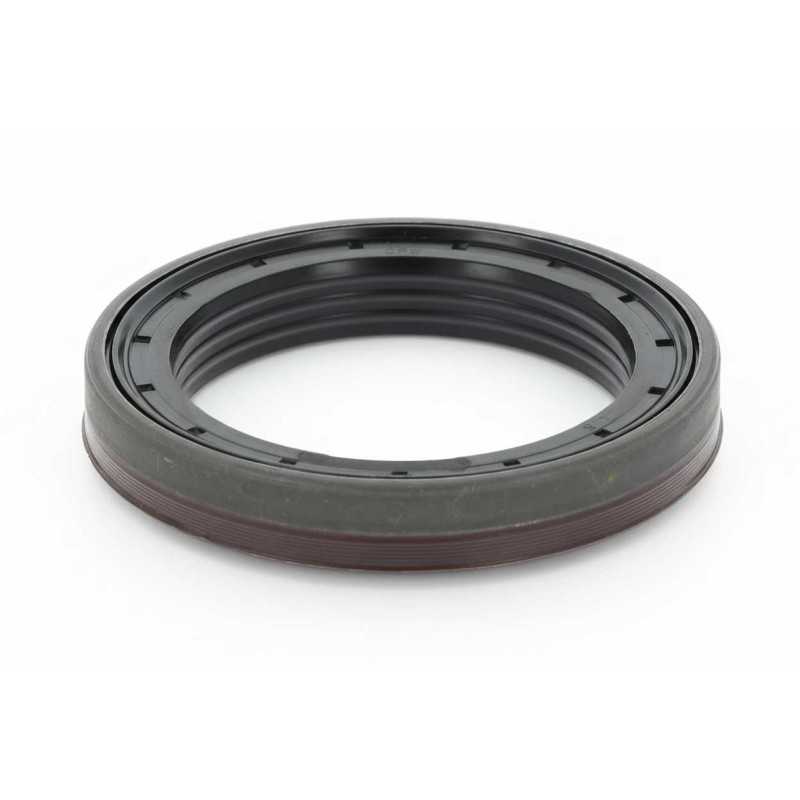

Oil Seal RICH 65x90x13/14,5 KASSETTE FPM 12015928B RICH
zoom_out_map
Oil Seal RICH 65x90x13/14,5 KASSETTE FPM 12015928B RICH

Oil Seal RICH 65x90x13/14,5 KASSETTE FPM

Type: Oil Seal / Shaft Seal / Sealing Ring (KASSETTE)
Model: RICH 65 x 90 x 13/14.5 FPM KASSETTE
Material: FPM Fluoroelastomer (-20÷200°C)
Brand: RICH
Origin: China
RICH
12015928B

Volume discounts

Quantity Unit price
10 €14.08
20 €13.41
50 €12.74
100 €12.07
€15.56
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Oil Seal RICH 65 × 90 × 13/14.5 FPM KASSETTE

OE References:

  • IVECO: 40102290, 40102293
  • CORTECO: 12015928B

Technical Specifications:

  • Brand: RICH
  • Type: Oil seal / Shaft seal / Sealing ring (KASSETTE)
  • Configuration: Single lip seal
  • Inner Diameter (d): 65 mm
  • Outer Diameter (D): 90 mm
  • Base Height (h1): 13 mm
  • Total/Inner Ring Height (h2): 14.5 mm
  • Material: FPM Fluoroelastomer
  • Weight: 0.121 kg
  • Temperature Range: -20°C to +200°C
  • Country of Origin: China

Performance Characteristics:

  • Material Type: Elastomeric sealing element based on FPM.
  • Thermal Classification: High-range thermal stability aligned with FPM material properties.
  • Profile Geometry: KASSETTE unitized labyrinth configuration.
  • Structural Layout: Integrated internal wear sleeve with single sealing lip designed for high-temperature fluid retention and contaminant exclusion.
  • Dimensional Format: 65 × 90 × 13/14.5 mm configuration.

Transparency Note: This product is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
65
Outer Diameter
90
Width
13//14,5
Weight
0,121
Compatible with Corteco
12015928B
