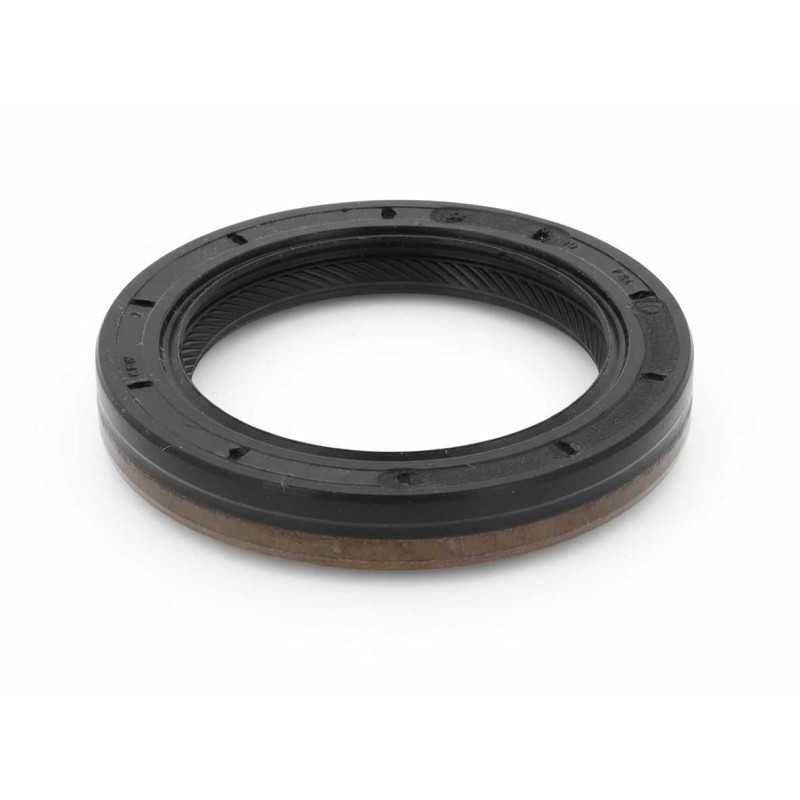

Oil Seal RICH 40x56x8 ACM 01035821B RICH
zoom_out_map
Oil Seal RICH 40x56x8 ACM 01035821B RICH

Oil Seal RICH 40x56x8 ACM

Type: Oil Seal / Shaft Seal / Sealing Ring (Double Lip / Right Twist)
Model: RICH 40 x 56 x 8 ACM
Material: ACM Polyacrylate Rubber (-30÷150°C)
Brand: RICH
Origin: China
RICH
01035821B

Volume discounts

Quantity Unit price
10 €2.52
20 €2.40
50 €2.28
100 €2.16
€2.78
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Oil Seal RICH 40 × 56 × 8 ACM

OE References:

  • AUDI / SEAT / SKODA / VW: 0AM301189A, 0AM301189C, 0AM301189E
  • 01035821B CORTECO

Technical Specifications:

  • Brand: RICH
  • Type: Oil seal / Shaft seal / Sealing ring
  • Swirl Type: Right-hand twist (R)
  • Configuration: Double lip seal
  • Inner Diameter (d): 40 mm
  • Outer Diameter (D): 56 mm
  • Height (h): 8 mm
  • Material: ACM (Polyacrylate Rubber)
  • Weight: 0.02 kg
  • Temperature Range: -30°C to +150°C
  • Country of Origin: China

Performance Characteristics:

  • Material Type: Elastomeric sealing element based on ACM.
  • Thermal Classification: Operating range consistent with ACM material specifications.
  • Profile Geometry: Radial shaft sealing structure with right-hand hydrodynamic twist.
  • Structural Layout: Molded sealing lip with integrated swirl profile and auxiliary dust lip.
  • Dimensional Format: 40 × 56 × 8 mm configuration.

Transparency Note: This product is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
40
Outer Diameter
56
Width
8
Weight
0,02
Compatible with Corteco
01035821B
