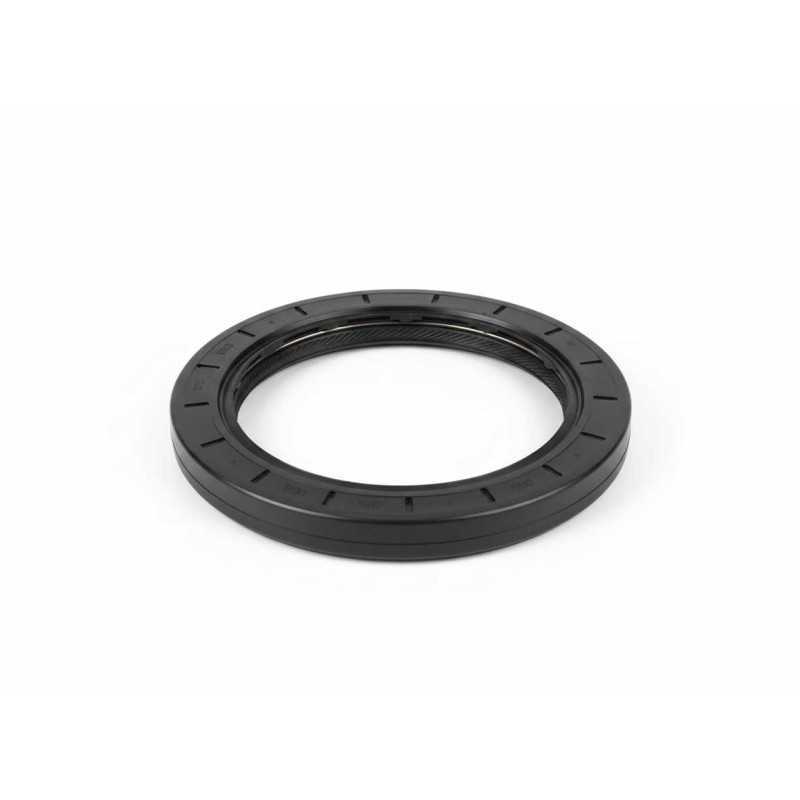

Oil Seal RICH 65 × 88 × 8 ACM
OE References:
- VW: 0A6409529E, 0A6409529B
- CORTECO: 49370480
Technical Specifications:
- Brand: RICH
- Type: Oil seal / Shaft seal / Sealing ring
- Inner Diameter (d): 65 mm
- Outer Diameter (D): 88 mm
- Height (h): 8 mm
- Material: ACM (Polyacrylate Rubber)
- Weight: 0.047 kg
- Temperature Range: -30°C to +150°C
- Country of Origin: China
Performance Characteristics:
- Material Type: Elastomeric sealing element based on ACM.
- Thermal Classification: Operating range consistent with ACM material specifications.
- Profile Geometry: Radial shaft sealing structure.
- Structural Layout: Precision-molded sealing lip designed for thermal stability and oil resistance in transmission environments.
- Dimensional Format: 65 × 88 × 8 mm configuration.
Transparency Note: This product is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
