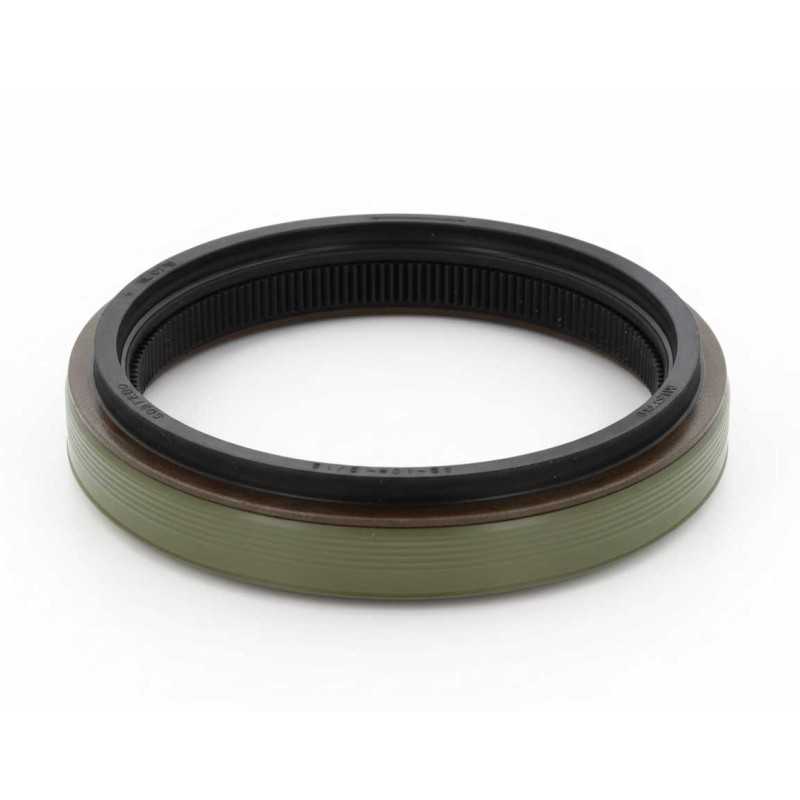

Oil Seal RICH 85 × 105 × 12/18 FPM KASSETTE
OE References:
- SCANIA: 1300974, 1380160, 1393331, 1502384
- CORTECO: 12018654B
Technical Specifications:
- Brand: RICH
- Type: Oil seal / Shaft seal / Sealing ring (KASSETTE)
- Swirl Type: Left-hand twist (L)
- Inner Diameter (d): 85 mm
- Outer Diameter (D): 105 mm
- Base Height (h1): 12 mm
- Total/Inner Ring Height (h2): 18 mm
- Material: FPM Fluoroelastomer
- Weight: 0.13 kg
- Temperature Range: -20°C to +200°C
- Country of Origin: China
Performance Characteristics:
- Material Type: Elastomeric sealing element based on FPM.
- Thermal Classification: Operating range consistent with FPM material specifications.
- Profile Geometry: KASSETTE unitized labyrinth configuration with left-hand hydrodynamic twist.
- Structural Layout: Integrated internal wear sleeve with multi-lip arrangement.
- Dimensional Format: 85 × 105 × 12/18 mm configuration.
Transparency Note: This product is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
