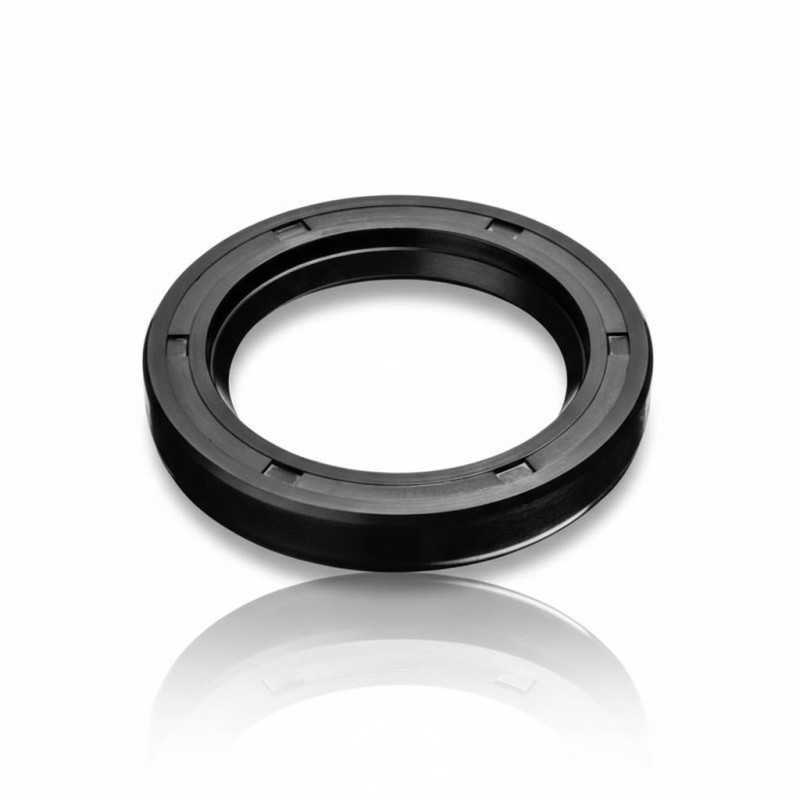

Sealing Ring FPM RICH 120 × 160 × 12 TC Double Lip Seal
Technical Specifications:
- Inner Diameter (d): 120 mm
- Outer Diameter (D): 160 mm
- Width (B): 12 mm
- Material: FPM (Fluoroelastomer)
- Temperature Range: -30°C to +200°C
- Profile: TC – Double lip with internal spring
- Brand: RICH
- Origin: China
Performance Characteristics:
- Lip Configuration: Radial shaft sealing ring with internal spring.
- Dimensional Format: The component maintains the 120 × 160 × 12 mm dimensional profile.
- Material Type: Elastomeric sealing element based on FPM fluoroelastomer.
- Spring Element: Internal tension spring supporting lip contact.
- Application Interface: Configured for oil and grease sealing environments.
- Dimensional Category: extended-format
Transparency Note: This seal is manufactured under the RICH brand. Dimensional values are provided solely for identification and do not imply compatibility with specific equipment or manufacturers.
