• New

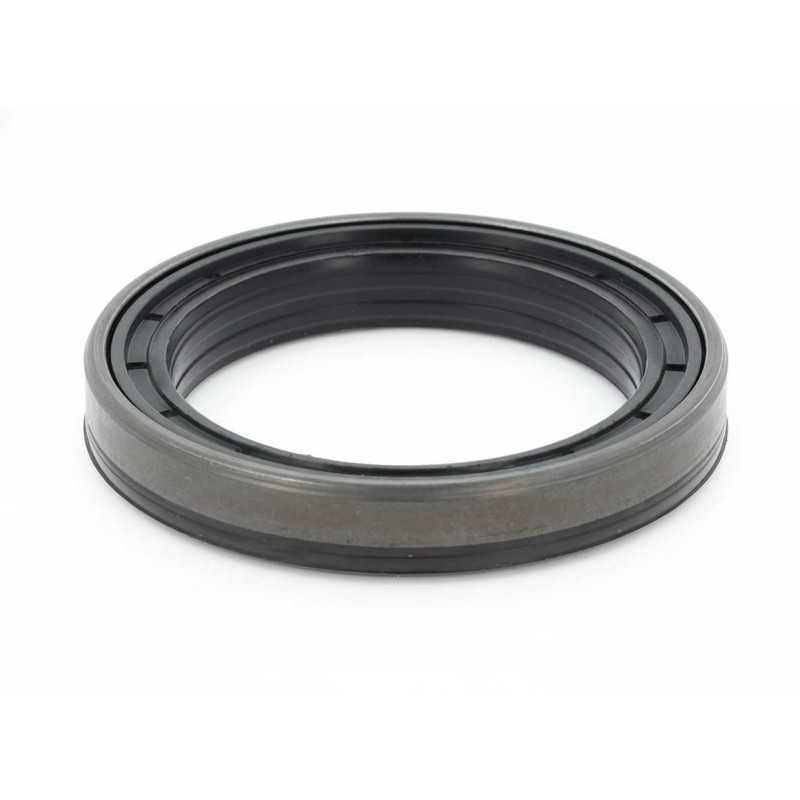

Oil Seal RICH 70x95x13/14,5 KASSETE FPM 12019199B RICH
zoom_out_map
Oil Seal RICH 70x95x13/14,5 KASSETE FPM 12019199B RICH

Oil Seal RICH 70x95x13/14,5 KASSETE FPM

Type: Oil Seal / Shaft Seal / Sealing Ring (KASSETTE)
Model: RICH 70 x 95 x 13/14.5 KASSETTE FPM
Material: FPM Fluoroelastomer (-20÷200°C)
Brand: RICH
Origin: China
RICH
12019199B

Volume discounts

Quantity Unit price
10 €19.17
20 €18.26
50 €17.35
100 €16.43
€21.18
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Oil Seal RICH 70 × 95 × 13/14.5 KASSETTE FPM

OE References:

  • AMAZONE: FA043
  • CARRARO: 138215
  • CLAAS: 0011305310, 1597600601602, 6005023964
  • DANA SPICER: 000051804, 3764633M1, 51804, 7600601602, 7500603001
  • DEUTZ AG: 04402442
  • FENDT: H816300020110, H926301020110
  • JOHN DEERE: AL115661, AL160535
  • KRAMP: CI138215
  • MASSEY FERGUSON: 3716017M1, 3764633M1, 7600601602
  • NEW HOLLAND: 98315686
  • SULKY: 720719
  • CORTECO: 12019199B

Technical Specifications:

  • Brand: RICH
  • Type: Oil Seal / Shaft Seal / Sealing Ring (KASSETTE)
  • Inner Diameter (d): 70 mm
  • Outer Diameter (D): 95 mm
  • Height 1 (h1): 13 mm
  • Height 2 (h2): 14.5 mm
  • Material: FPM Fluoroelastomer
  • Temperature Range: -20°C to +200°C
  • Weight: 0.122 kg
  • Country of Origin: China

Performance Characteristics:

  • Material Type: Sealing element based on FPM elastomer.
  • Thermal Classification: Operating range aligned with FPM material specifications.
  • Profile Geometry: KASSETTE type unitized radial shaft seal.
  • Structural Layout: Integrated sealing system with internal running surface and molded lip structure, designed for heavy-duty agricultural axles and hubs.
  • Dimensional Format: 70 × 95 × 13/14.5 mm profile.

Transparency Note: This oil seal is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
70
Outer Diameter
95
Width
13//14,5
Weight
0,122
Compatible with Corteco
12019199B
