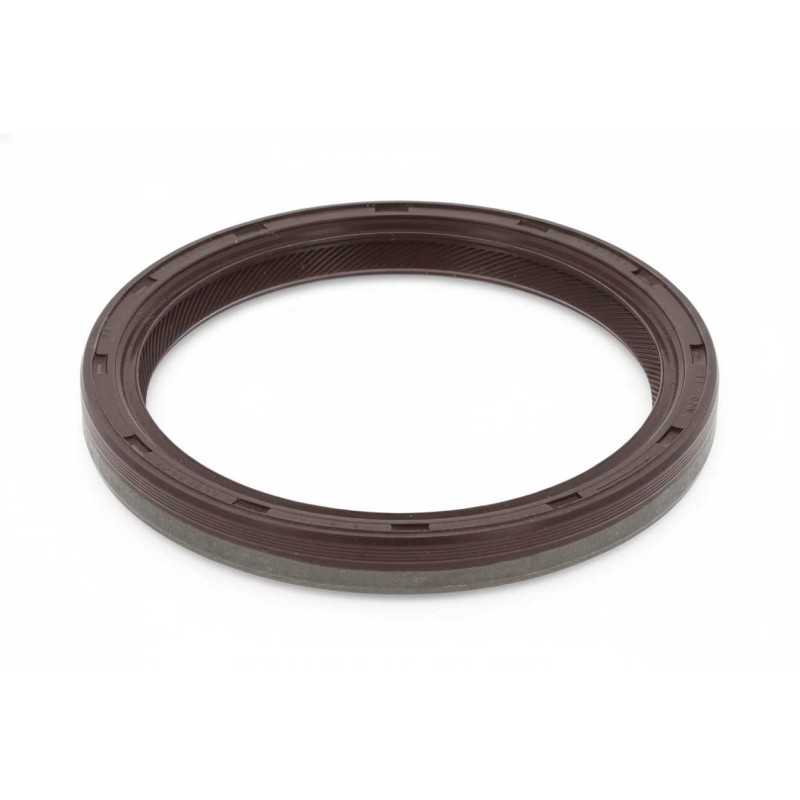

Oil Seal RICH 80x98x10 FPM 12013882B RICH
zoom_out_map
Oil Seal RICH 80x98x10 FPM 12013882B RICH

Oil Seal RICH 80x98x10 FPM

Type: Oil Seal / Shaft Seal / Sealing Ring
Model: RICH 80 x 98 x 10 FPM
Material: FPM Fluoroelastomer (-20°C to +200°C)
Brand: RICH
Origin: China
RICH
12013882B

Volume discounts

Quantity Unit price
10 €4.74
20 €4.52
50 €4.29
100 €4.07
€5.24
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Oil Seal RICH 80x98x10 FPM

OE References:

  • DAEWOO: 96376569
  • GM: 96376569
  • OPEL: 614811, 614820, 614821, 614830, 90233236, 90352112
  • SAAB: 90352112
  • VAUXH: 614811, 614820, 614821, 614830, 90233236
  • CORTECO: 12013882B

Technical Specifications:

  • Brand: RICH
  • Type: Oil Seal / Shaft Seal / Sealing Ring
  • Inner Diameter (d): 80 mm
  • Outer Diameter (D): 98 mm
  • Height (h): 10 mm
  • Material: FPM Fluoroelastomer
  • Temperature Range: -20°C to +200°C
  • Weight: 0.051 kg
  • Country of Origin: China

Performance Characteristics:

  • Material Type: Sealing element based on FPM elastomer.
  • Thermal Classification: High-performance thermal stability with an operational threshold spanning from -20°C to +200°C, typical of fluoroelastomer compounds.
  • Profile Geometry: Radial shaft sealing structure.
  • Structural Layout: Molded double sealing lip configured for optimized contact with rotating surfaces and superior protection against external contaminants under severe thermal conditions.
  • Dimensional Format: 80 × 98 × 10 mm profile.

Transparency Note: This oil seal is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
80
Outer Diameter
98
Width
10
Weight
0,051
Compatible with Corteco
12013882B
