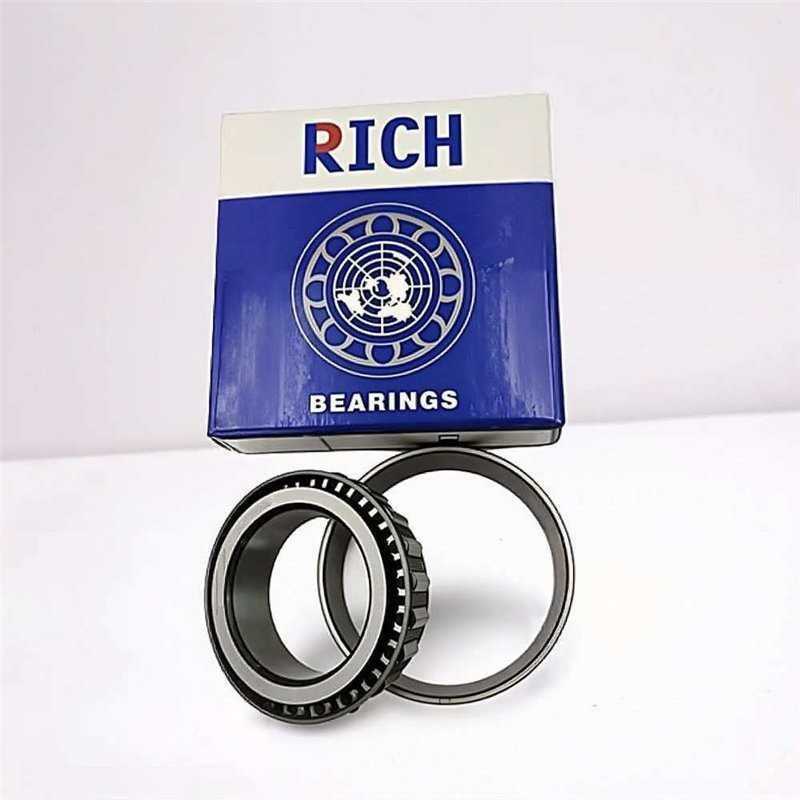

19138/19283 RICH 34,976x72x17,018
The 19138/19283 RICH single row tapered roller bearing (34.976 x 72 x 17.018 mm) handles high combined radial and axial loads, features a separable design, and ensures smooth operation.
19138/19283 RICH Single Row Tapered Roller Bearing - 34.976 x 72 x 17.018 mm
Technical Specifications:
- Product Type: Single Row Tapered Roller Bearing
- Model Designation: 19138/19283
- Brand: RICH
- Bore Diameter (d): 34.976 mm
- Outer Diameter (D): 72 mm
- Total Width (T): 17.018 mm
- Inner Ring Width (B): 16.52 mm
- Outer Ring Width (C): 14.288 mm
- Weight: 0.33 kg
- Country of Origin: China
The 19138/19283 RICH is a robust single row tapered roller bearing designed specifically to manage heavy combined radial and axial loads. The geometry of the tapered rollers and raceways directs the forces to a common point on the bearing axis, ensuring true rolling motion and reliable performance. With dimensions of 34.976 mm bore, 72 mm outer diameter, and a 17.018 mm total width (T), this bearing is suited for gearboxes, axles, and automotive applications. The bearing features a separable design, where the inner ring assembly (cone, 19138) and the outer ring (cup, 19283) can be mounted independently. To support axial loads in both directions, this single row bearing must typically be mounted and adjusted against a second tapered roller bearing.
Key Performance Advantages:
- High Combined Load Capacity: Optimized to withstand heavy radial and single-direction axial forces.
- Separable Design: Cone and cup can be mounted individually, simplifying assembly and maintenance procedures.
- Precision Rolling Motion: Tapered roller geometry ensures low friction and high operational accuracy.
- RICH Quality: A durable component built for longevity in demanding industrial and transport applications.
Data sheet
Inner Diameter
34,976
Outer Diameter
72,085
Width
17,018
Roller Rows
Single Row
Cage
Steel Cage
Category
Single Row Tapered Roller Bearing
