LM503349A/503310 RICH 45,987x74,976x18 LM503349A/503310 RICH
zoom_out_map
LM503349A/503310 RICH 45,987x74,976x18 LM503349A/503310 RICH

LM503349A/503310 RICH 45,987x74,976x18

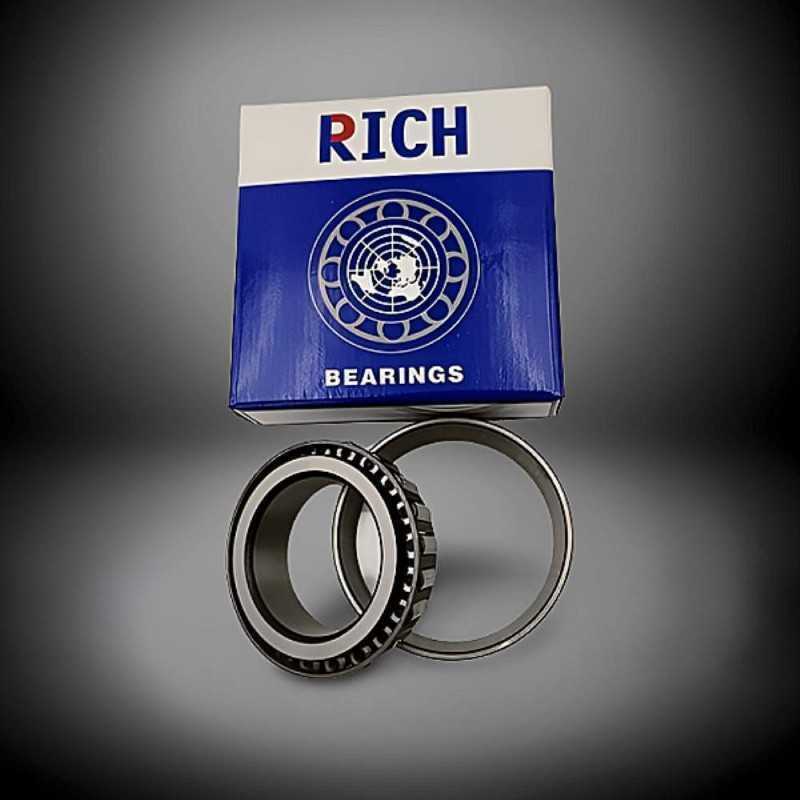

The LM503349A/503310 RICH Single Row Tapered Roller Bearing (45.987x74.976x18 mm) handles heavy combined loads and features separable cone/cup components for easy mounting.

RICH
LM503349A/503310
€2.74
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

LM503349A/503310 RICH Single Row Tapered Roller Bearing - Inch Series - 45.987 x 74.976 x 18 mm

Technical Specifications:

  • Brand: RICH
  • Type: Single Row Tapered Roller Bearing (Separable Cone and Cup)
  • Model: LM503349A/503310
  • Inner Diameter (d): 45.987 mm
  • Outer Diameter (D): 74.976 mm
  • Total Width (T): 18 mm
  • Dimensions: 45.987 x 74.976 x 18 mm
  • Outer Ring Width (C): 14 mm
  • Inner Ring Width: 18 mm
  • Weight: 0.306 kg
  • Country of Origin: China

Key Performance Advantages:

  • High Combined Load Capacity:** Optimized for reliably supporting heavy radial loads and high unidirectional axial thrust.
  • Separable Design:** Cone (LM503349A) and cup (503310) components allow for simple mounting and precise setting of running clearance.
  • Inch Series Standard:** Precision manufactured to common imperial dimensions for wide compatibility in automotive and industrial applications.
  • High Rigidity:** Tapered roller geometry ensures excellent stability and positional accuracy under load.

Transparency Note

The LM503349A/503310 bearing is manufactured by RICH in China to meet stringent quality and dimensional standards, ensuring reliable performance.

Data sheet

Inner Diameter
45,987
Outer Diameter
74,976
Width
18
Weight
0,306
Roller Rows
Single Row
Cage
Steel Cage
Clearance
CN (Normal)
Category
Single Row Tapered Roller Bearing
