AU0712-1 RICH 34x58x24

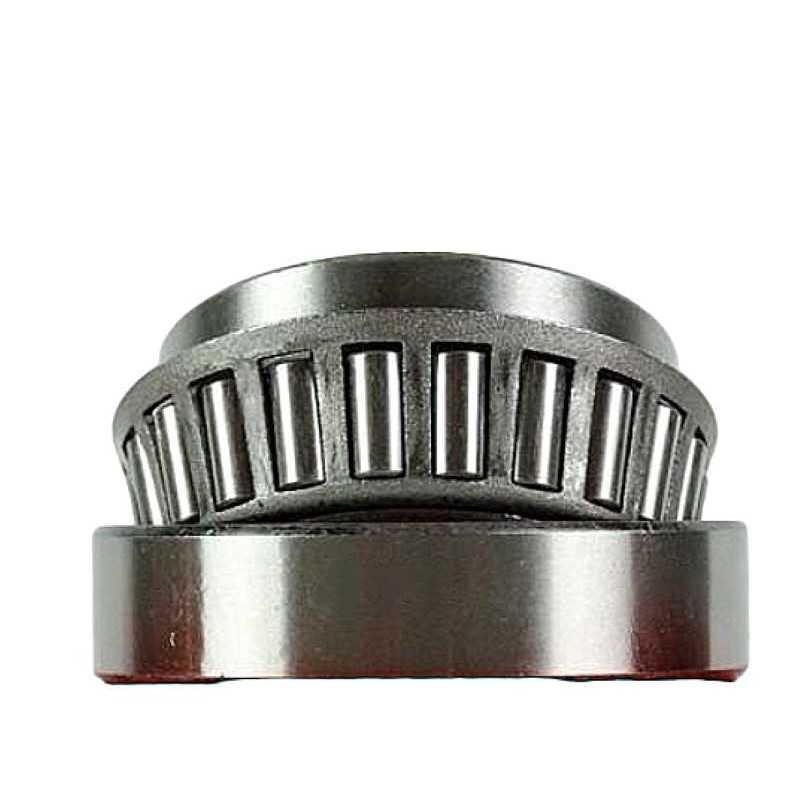

AU0712-1 RICH Single Row Tapered Roller Bearing - 34 x 58 x 24 mm
Technical Specifications:
- Product Type: Single Row Tapered Roller Bearing
- Model Designation: AU0712-1
- Brand: RICH
- Bore Diameter (d): 34 mm
- Outer Diameter (D): 58 mm
- Total Bearing Width (T): 24 mm
- Outer Ring Width (C): 14 mm
- Inner Ring Width: 23 mm
- Weight: 0.21 kg
- Country of Origin: China
The AU0712-1 RICH is a precision single row tapered roller bearing designed to efficiently manage heavy combined loads—simultaneous radial and high axial forces. With dimensions of 34 mm bore, 58 mm outer diameter, and a total width of 24 mm, this bearing is constructed with tapered rollers and raceways arranged so that the axes of the raceways and rollers meet at a common apex on the bearing axis. This geometric configuration makes it exceptionally suited for applications requiring high rigidity and load-carrying capacity in one direction of thrust. The bearing's separated components (inner ring assembly and outer ring) allow for mounting adjustments. The AU0712-1 RICH is commonly used in wheel hubs, gearboxes, differentials, and other rotating equipment found in the automotive and industrial sectors.
Key Performance Advantages:
- High Combined Load Capacity: Efficiently handles both heavy radial loads and high axial loads in one direction.
- Tapered Roller Design: Provides high rigidity and strength under demanding operating conditions.
- Separable Components: Allows for easier mounting, dismounting, and precise adjustment of clearance during installation.
- RICH Quality: A durable component engineered for stability and long service life in heavy-load applications.
Data sheet
Inner Diameter
34
Outer Diameter
58
Width
24
Roller Rows
Single Row
Category
Single Row Tapered Roller Bearing
