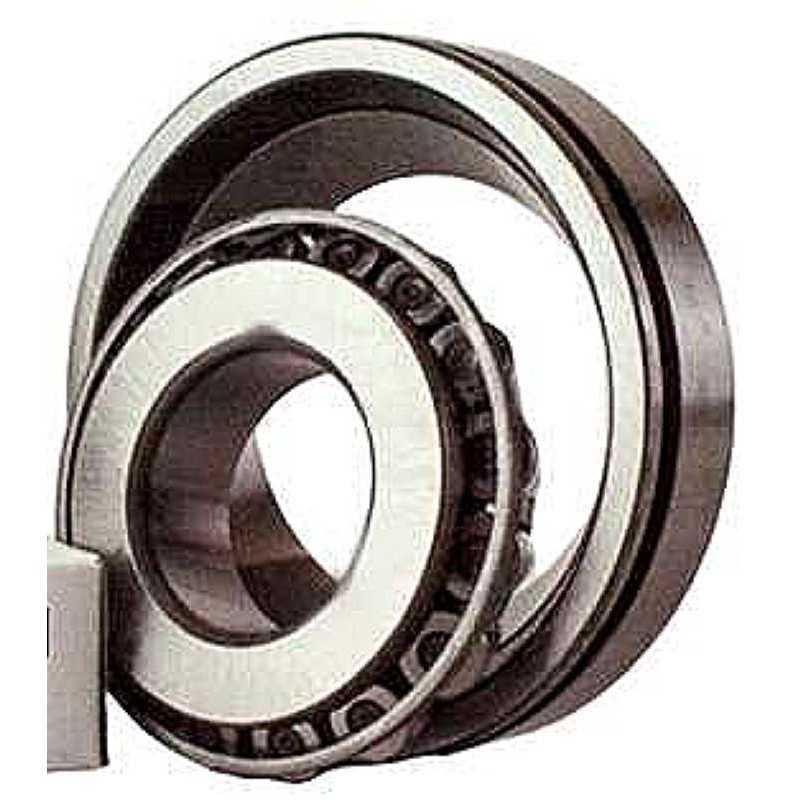

CR-09A35 RICH 45x120x27,25 3E-CR-09A35 RICH
zoom_out_map
CR-09A35 RICH 45x120x27,25 3E-CR-09A35 RICH

CR-09A35 RICH 45x120x27,25

Type: Tapered Roller Bearing
Model: CR-09A35 RICH
Bore: 45 mm
Interchange: NTN 3E-CR-09A35
Brand: RICH
Origin: China
RICH
3E-CR-09A35
€18.85
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

CR-09A35 RICH Single Row Tapered Roller Bearing - 45 x 120 x 27.25 mm

OE Reference / Interchange:

  • NTN: 3E-CR-09A35

Technical Specifications:

  • Catalog Code: CR-09A35 RICH
  • Brand: RICH
  • Type: Single row tapered roller bearing
  • Dimensions: 45 x 120 x 27.25 mm
  • Inner Diameter (d): 45 mm
  • Outer Diameter (D): 120 mm
  • Total Bearing Width (T): 27.25 mm
  • Inner Ring Width (B): 25.5 mm
  • Outer Ring Width (C): 27.2 mm
  • Groove on Outer Ring: Yes
  • Weight: 1.613 kg
  • Country of Origin: China

Key Performance Advantages:

  • NTN Interchange Compatibility: Precision-engineered to replace the 3E-CR-09A35 NTN model, ensuring identical fitment and performance in specialized machinery.
  • Integrated Outer Ring Groove: Includes a technical groove on the outer ring for precise axial locking using snap rings, ideal for complex gearbox assemblies.
  • Exceptional Load Management: Specifically designed to absorb high radial and axial thrust loads simultaneously with high operational stability.
  • Optimized Contact Geometry: The tapered rollers feature a refined profile to ensure uniform stress distribution across the raceways, minimizing wear.

Transparency Note: This product is manufactured under the RICH brand. The code CR-09A35 and the NTN 3E-CR-09A35 reference are used for identification and interchange purposes and do not imply affiliation with the original equipment manufacturer.

Data sheet

Inner Diameter
45
Outer Diameter
120
Width
27,25
Weight
1,6
Roller Rows
Single Row
Category
Single Row Tapered Roller Bearing
