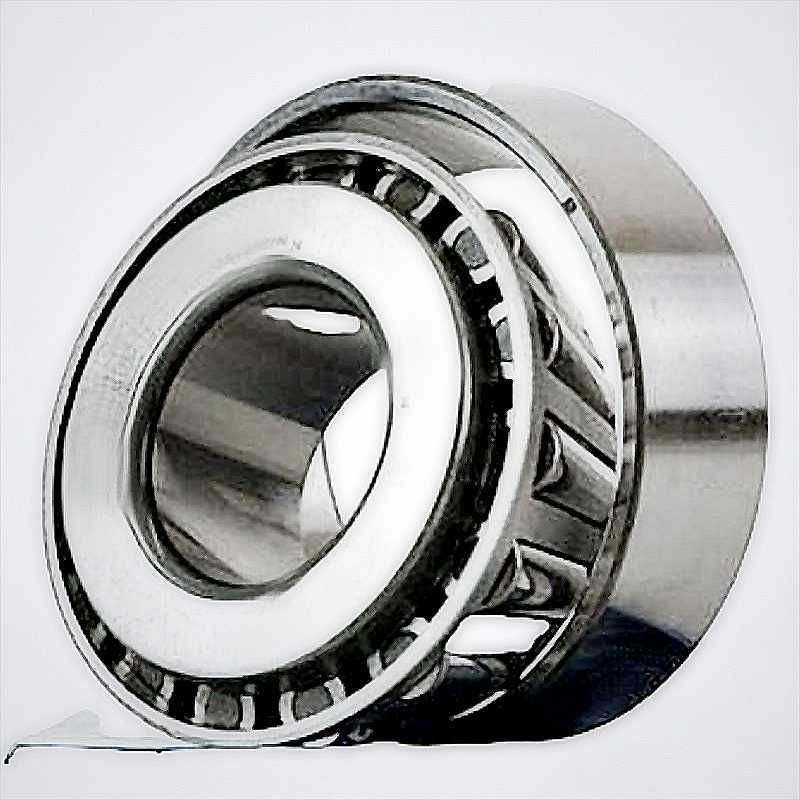

TR 0708-1 RICH Tapered Roller Bearing - 35 x 80 x 32.75 mm
OE References
Toyota: 90366-35007 | 90366-35008 | 90366-35023
Technical Specifications:
- Catalog Code: TR 0708-1 RICH
- Brand: RICH
- Type: Single row tapered roller bearing
- Inner Diameter (d): 35 mm
- Outer Diameter (D): 80 mm
- Total Width (T): 32.75 mm
- Inner Ring Width (B): 31 mm
- Outer Ring Width (C): 25 mm
- Weight: 0.798 kg
- Country of Origin: China
Key Performance Advantages:
- High Combined Load Capacity: The TR 0708-1 RICH is specifically optimized to manage simultaneous radial and axial forces, making it ideal for vehicle driveline components.
- Precision Rolling Geometry: Engineered with optimized contact surfaces between the rollers and raceways to minimize friction and heat generation during high-speed rotation.
- Separable Construction: The cup and cone are independently mountable, allowing for easier installation and precise adjustment of internal clearance or preload during assembly.
- Enhanced Service Life: Manufactured from high-tensile bearing steel to provide maximum fatigue resistance and reliable performance in heavy-duty automotive applications.
- Rigid Mechanical Stability: The wide profile design (32.75 mm) ensures superior shaft guidance and resistance to misalignment, protecting the integrity of the surrounding gearbox or differential.
Transparency Note: This bearing is manufactured under the RICH brand. The code TR 0708-1 is used for identification and does not imply affiliation with other manufacturers.
