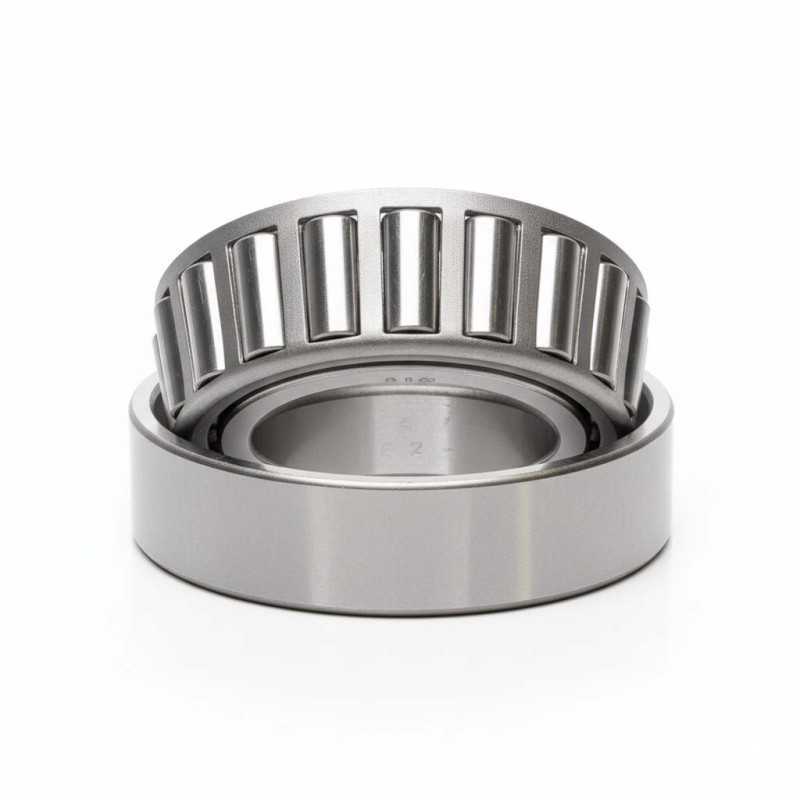

559/552A RICH Single Row Tapered Roller Bearing – 63.5 × 123.825 × 38.1 mm
Technical Specifications:
- Brand: RICH
- Type: Single row tapered roller bearing
- Model: 559/552A RICH
- Inner Diameter (d): 63.5 mm
- Outer Diameter (D): 123.825 mm
- Total Width (T): 38.1 mm
- Inner Ring Width (B): 36.678 mm
- Outer Ring Width (C): 30.162 mm
- Rounding Radius (R1): 3.6 mm
- Rounding Radius (R2): 3.3 mm
- Precision Class: P6
- Weight: 2.01 kg
- Country of Origin: China
Performance Characteristics:
- Roller Geometry: Tapered profile
- Precision Rating: P6 class
- Internal Structure: Cup and cone assembly
- Material Type: High‑carbon chrome bearing steel
- Assembly Format: Separable components
559/552A RICH is a single row tapered roller bearing with P6 precision class. Dimensional and structural characteristics correspond to the 63.5 × 123.825 × 38.1 mm specification.
Additional Technical Data:
- Designation: 559/552A
- Bore Type: Cylindrical
- Cage Material: Pressed steel
Transparency Note: This component is manufactured under the RICH brand. Dimensions and references are used for identification and do not imply affiliation with the original equipment manufacturer.
