EC12245 S03 RICH 35x84x19 EC12245S04 RICH
zoom_out_map
EC12245 S03 RICH 35x84x19 EC12245S04 RICH

EC12245 S03 RICH 35x84x19

Type: Single Row Tapered Roller Bearing
Model: EC12245 S03 RICH
Dimensions: 35 x 84 x 19 mm
Brand: RICH
Origin: China
RICH
EC12245S04
€32.15
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

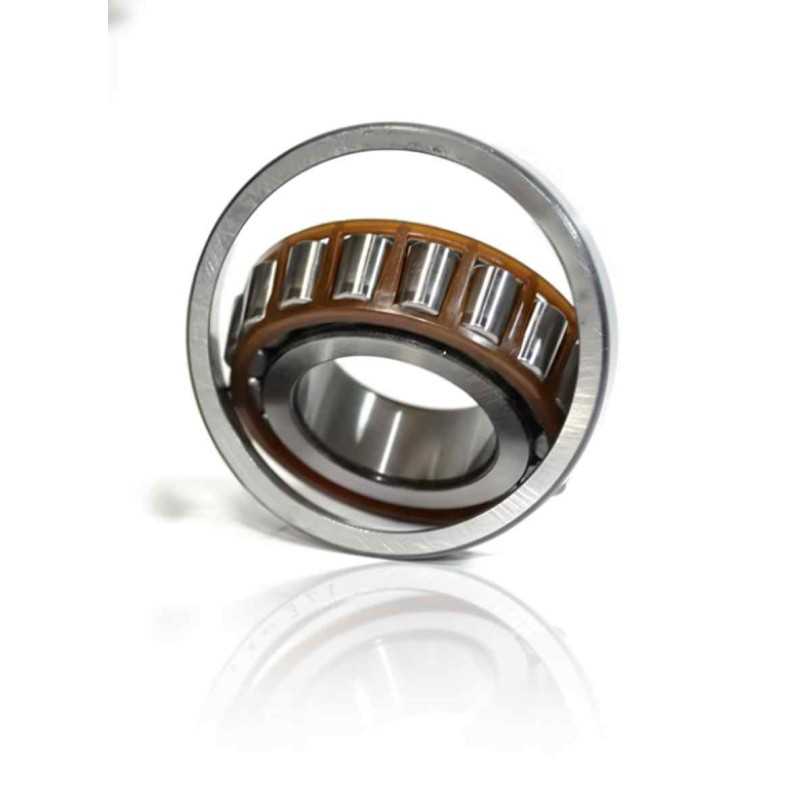

EC12245 S03 RICH Single Row Tapered Roller Bearing – 35 × 84 × 19 mm

OE References:

  • PEUGEOT 7903090137
  • PEUGEOT 9603417880

Technical Specifications:

  • Type: Single row tapered roller bearing
  • Brand: RICH
  • Model Designation: EC12245 S03 RICH
  • Inner Diameter (d): 35 mm
  • Outer Diameter (D): 84 mm
  • Total Width (T): 19 mm
  • Inner Ring Width (B): 18 mm
  • Outer Ring Width (C): 17 mm
  • Snap Ring Groove: Yes (on outer ring)
  • Weight: 0.557 kg
  • Cage: Steel, guided by the rolling elements
  • Country of Origin: China

Performance Characteristics:

  • Structural Layout: Single row tapered roller bearing with an integrated snap ring groove on the outer ring.
  • Internal Geometry: Optimized for simultaneous management of high radial and axial thrust loads.
  • Material Composition: High-carbon chromium steel construction for maximum load capacity and service life.
  • Cage System: Rolling-element-guided steel cage ensures precise roller alignment and smooth rotation.
  • Dimensional Format: 35 × 84 × 19 mm configuration.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
38
Outer Diameter
84
Width
19
Weight
0,557
Roller Rows
Single Row
Cage
Steel
Category
Single Row Tapered Roller Bearing
