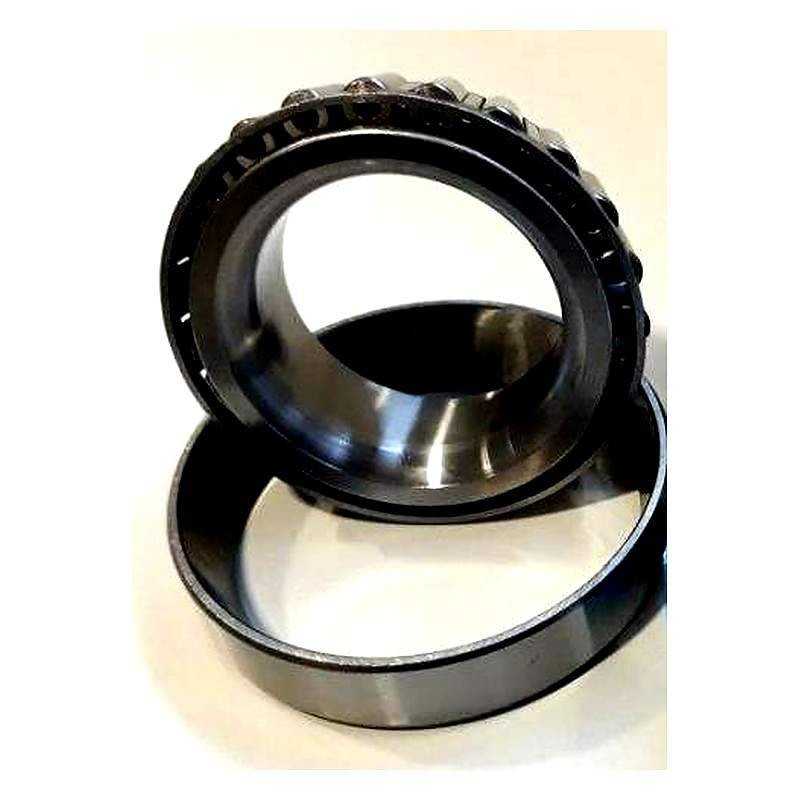

32008X JA2 RICH Single Row Tapered Roller Bearing – 40 × 68 × 19 mm
OE References:
- ISUZU 8942270410
- ISUZU 8942270440
- ISUZU 8942270450
- ISUZU 8971183060
- KOYO 57407/32008J
- NSK 32008XJA2
- NTN EC35083
- OPEL 330020
- OPEL 330023
- SKF 32008X/QVB458
- SNR 12R.32008.C
- SNR R153.42
- TIMKEN NP177400-NP654538
- VAUXHALL 94258819
- VAUXHALL 97118306
Technical Specifications:
- Type: Single row tapered roller bearing
- Brand: RICH
- Model Designation: 32008XJA2 RICH
- Inner Diameter (d): 40 mm
- Outer Diameter (D): 68 mm
- Total Width (T): 19 mm
- Inner Ring Width (B): 19 mm
- Outer Ring Width (C): 14.5 mm
- Rounding Radius (R1): 5 mm
- Weight: 0.283 kg
- Country of Origin: China
Performance Characteristics:
- Structural Layout: Single row tapered roller bearing designed to support combined radial and axial loads simultaneously.
- Material Composition: Constructed from high-carbon chromium steel for superior surface hardness and mechanical fatigue resistance.
- Design Feature: Features a significant rounding radius of 5 mm and an outer ring width of 14.5 mm for specific housing integration.
- Operational Logic: Engineered for automotive and industrial applications requiring precise axial guidance and high load-bearing capacity.
- Dimensional Format: 40 × 68 × 19 mm configuration, optimized for transmission and wheel hub assemblies.
Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
