ST 5177 RICH 51x77x17,5

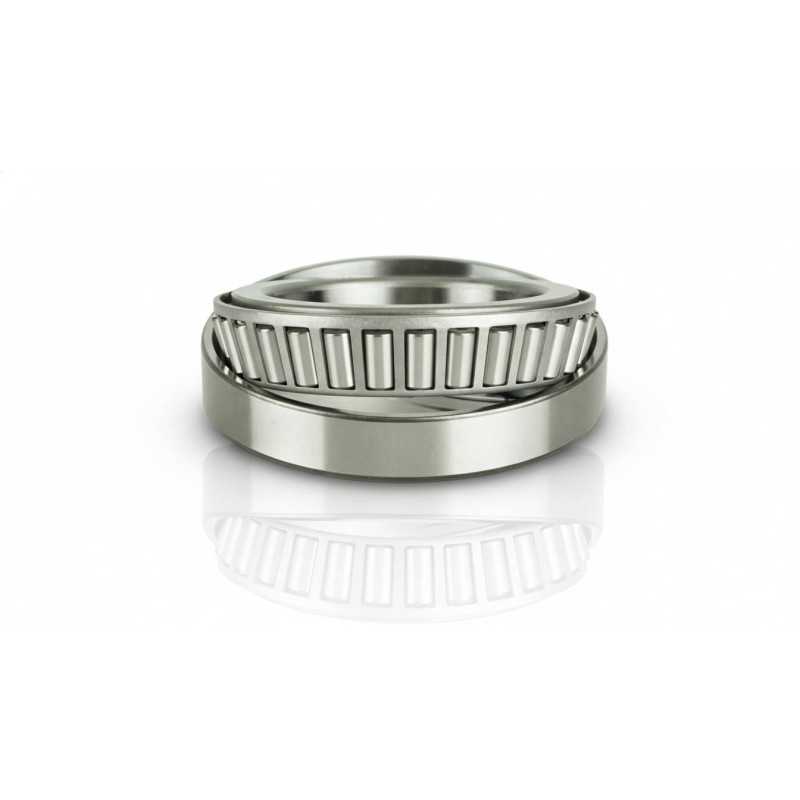

ST 5177 RICH Single Row Tapered Roller Bearing – 51 × 77 × 17.5 mm

Technical Specifications:

• Type: Single row tapered roller bearing
• Brand: RICH
• Model Designation: ST 5177 RICH
• Inner Diameter (d): 51 mm
• Outer Diameter (D): 77 mm
• Total Width (T): 17.5 mm
• Inner Ring Width (B): 15.5 mm
• Outer Ring Width (C): 14 mm
• Weight: 0.275 kg
• Country of Origin: China

Performance Characteristics:

• Structural Layout: Single-row tapered roller arrangement.
• Material Type: High-carbon chromium steel.
• Internal Geometry: Tapered roller and raceway configuration.
• Dimensional Format: 51 × 77 × 17.5 mm configuration.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
