570050 RICH 30x72x20,75

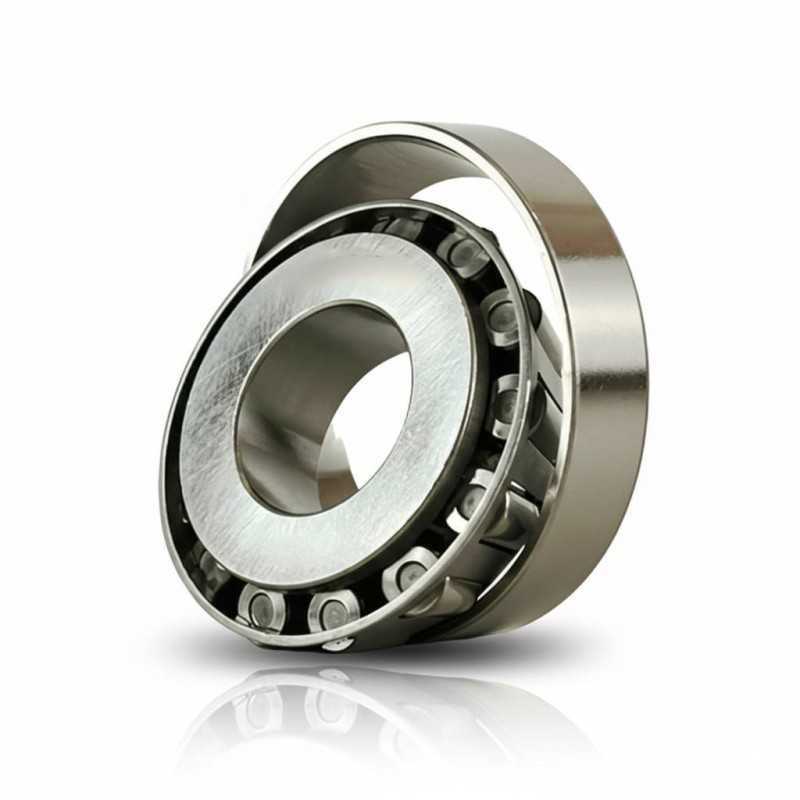

570050 RICH Single Row Tapered Roller Bearing – 30 × 72 × 20.75 mm

OE References:

• SUZUKI: 09265-30017, 09265-30018, 09265-30012

Technical Specifications:

• Type: Single row tapered roller bearing
• Brand: RICH
• Model Designation: 570050 RICH
• Inner Diameter (d): 30 mm
• Outer Diameter (D): 72 mm
• Total Width (T): 20.75 mm
• Inner Ring Width (B): 19 mm
• Outer Ring Width (C): 14 mm
• Rounding Radius (R1): 0.05 mm
• Cage Material: Steel
• Weight: 0.388 kg
• Country of Origin: China

Performance Characteristics:

• Structural Layout: Single-row tapered roller arrangement.
• Material Type: High-carbon chromium steel with a durable steel cage.
• Internal Geometry: Optimized raceway and roller configuration with a 0.05 mm rounding radius.
• Dimensional Format: 30 × 72 × 20.75 mm configuration.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
