CBK336 RICH 66,675x110x22 CBK336 RICH
zoom_out_map
CBK336 RICH 66,675x110x22 CBK336 RICH

CBK336 RICH 66,675x110x22

Type: Single Row Tapered Roller Bearing
Model: CBK336 RICH
OE References: JD8206 JOHN DEERE, 6563027761M91 MASSEY FERGUSON
Dimensions: 66.675 x 110 x 22 mm
Brand: RICH
Origin: China
RICH
CBK336
€10.82
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

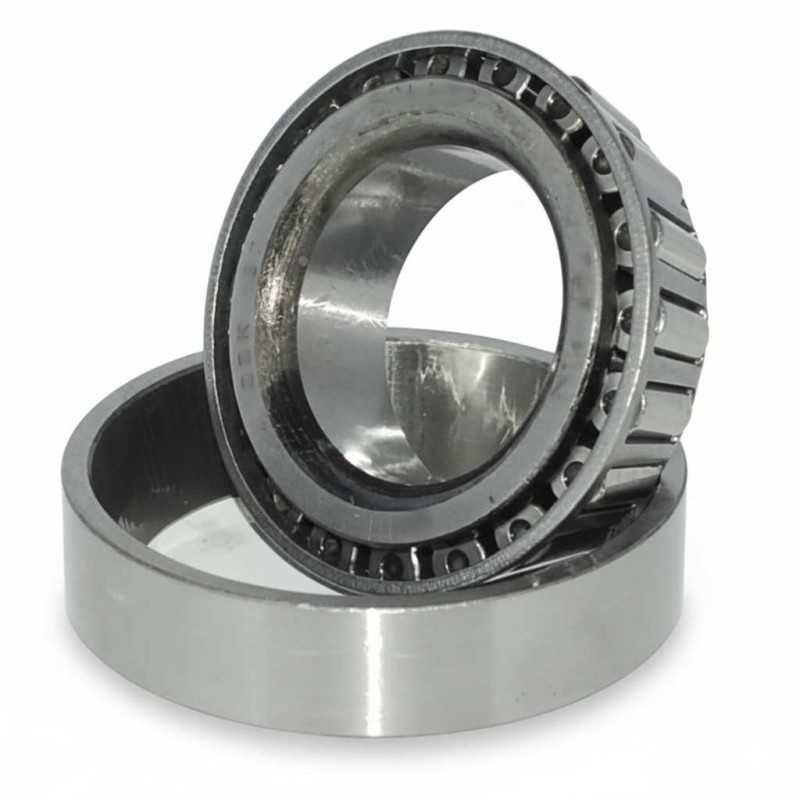

CBK336 RICH – Single Row Tapered Roller Bearing – 66.675 x 110 x 22 mm

OE Reference:

  • JOHN DEERE: JD8206
  • MASSEY FERGUSON: 6563027761M91
  • VALTRA: 1851392

Technical Specifications:

  • Type: Single row tapered roller bearing
  • Brand: RICH
  • Model Designation: CBK336
  • Inner Diameter (d): 66.675 mm
  • Outer Diameter (D): 110 mm
  • Total Width (T): 22 mm
  • Inner Ring Width (B): 21.996 mm
  • Outer Ring Width (C): 18.824 mm
  • Rounding Radius (R1): 0.8 mm
  • Rounding Radius (R2): 1.3 mm
  • Weight: 0.797 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Configuration: Precision-engineered single-row assembly with conical rollers designed to support high-magnitude radial and axial load combinations.
  • Load Capability: Specifically optimized for heavy-duty agricultural and industrial machinery, providing exceptional mechanical rigidity and reliable axial thrust support.
  • Operational Stability: Advanced internal geometry and optimized rounding radii ensure uniform contact stress distribution, reducing friction and localized mechanical stress.
  • Mechanical Interface: 66.675 x 110 x 22 mm dimensional format manufactured to rigorous industrial tolerances for seamless compatibility with John Deere and Massey Ferguson original equipment.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
66,675
Outer Diameter
110
Width
22
Weight
0,79
Category
Single Row Tapered Roller Bearing
