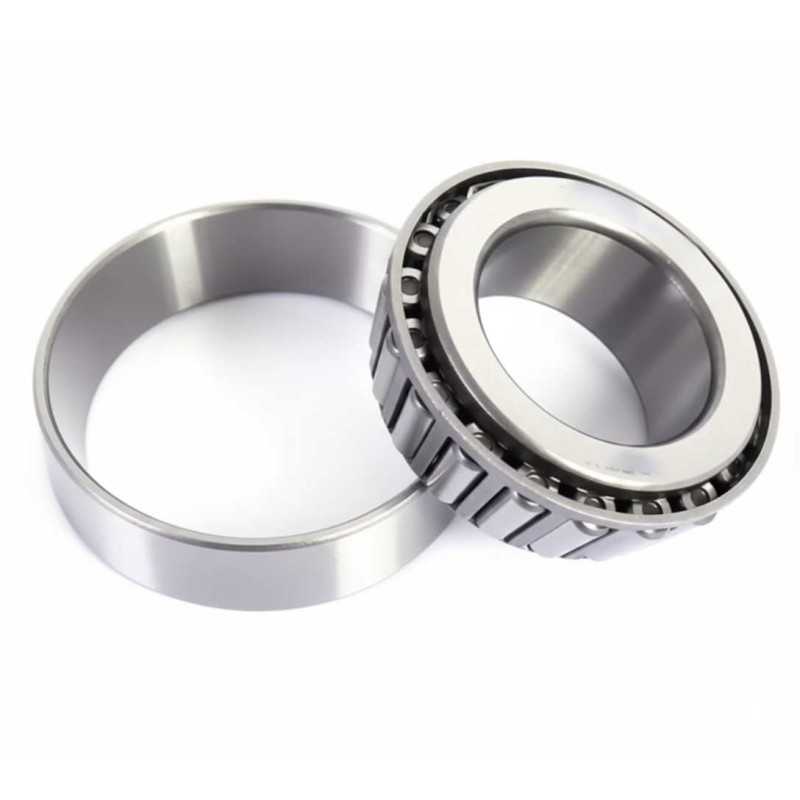

32009X RICH 45x75x20 32009X RICH

32009X RICH 45x75x20

Type: Single Row Tapered Roller Bearing
Model: 32009X RICH
OE Reference: 0002380750 CLAAS, 84438713 JOHN DEERE, CB005 AMAZONE
Dimensions: 45 x 75 x 20 mm
Brand: RICH
Origin: China
RICH
32009X
€3.04
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

32009X RICH – Single Row Tapered Roller Bearing – 45 x 75 x 20 mm

OE References:

  • AMAZONE: CB005
  • CLAAS: 0002380750, 238075.0, 7700029178, 0006697810, 669781.0
  • CNH: 042509006, 042532009, 134037A1, 1963852C1, 82848314, 84021879, 89833824
  • DANA SPICER: 3001884X1, 3010058X1, 3010060X1
  • FENDT: X619045300003, X619045300009
  • JOHN DEERE: 84438713
  • MASSEY FERGUSON: 3010901X91, D41662700
  • NEW HOLLAND: 84438713, 89833824
  • IVECO: 1905221
  • LEMKEN: 3199206

Technical Specifications:

  • Type: Single row tapered roller bearing
  • Brand: RICH
  • Model Designation: 32009X
  • Inner Diameter (d): 45 mm
  • Outer Diameter (D): 75 mm
  • Total Width (T): 20 mm
  • Inner Ring Width (B): 20 mm
  • Outer Ring Width (C): 15.5 mm
  • Rounding Radius (R1): 1 mm
  • Weight: 0.341 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Configuration: High-precision single-row tapered roller bearing engineered with optimized conical rolling elements to manage simultaneous radial and axial load vectors.
  • Application Versatility: Extensively utilized in agricultural and industrial machinery, specifically within wheel hubs and transmission systems requiring rigid shaft guidance.
  • Load Distribution: The internal geometry is designed to ensure uniform contact stress across the raceways, enhancing resistance to fatigue and extending operational life under heavy work cycles.
  • Mechanical Interface: 45 x 75 x 20 mm dimensional format produced to rigorous global standards, ensuring seamless interchangeability with primary OE agricultural components.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
45
Outer Diameter
75
Width
20
Weight
0,34
Roller Rows
Single Row
Cage
Steel Cage
Category
Single Row Tapered Roller Bearing
