32010 JR/R3 RICH 50x100x20,2

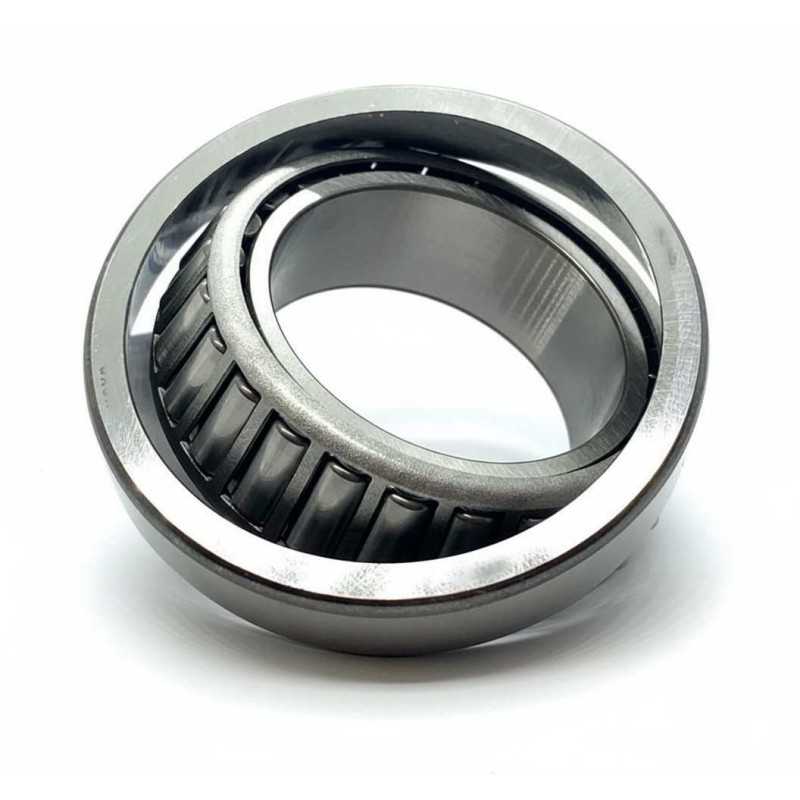

32010 JR/R3 RICH – Single Row Tapered Roller Bearing – 50 x 100 x 20.2 mm

Interchange References:

• KOYO: 32010 JR/1DYR3LFT

Technical Specifications:

• Type: Single row tapered roller bearing
• Brand: RICH
• Model Designation: 32010 JR/R3
• Inner Diameter (d): 50 mm
• Outer Diameter (D): 100 mm
• Total Width (T): 20.2 mm
• Inner Ring Width (B): 20 mm
• Outer Ring Width (C): 15.5 mm
• Weight: 0.72 kg
• Country of Origin: China

Construction Features:

• Tapered roller assembly with matched cone and cup geometry
• Separate inner ring (cone) and outer ring (cup) configuration
• Standardized 50 x 100 x 20.2 mm dimensional layout
• Consistent structural profile for bearing seating interfaces

Transparency Note: This bearing is manufactured under the RICH brand. Any interchange references are provided solely for identification and do not imply affiliation with other manufacturers.
