M86649R/86610 RICH 30,162x64,292x21,432

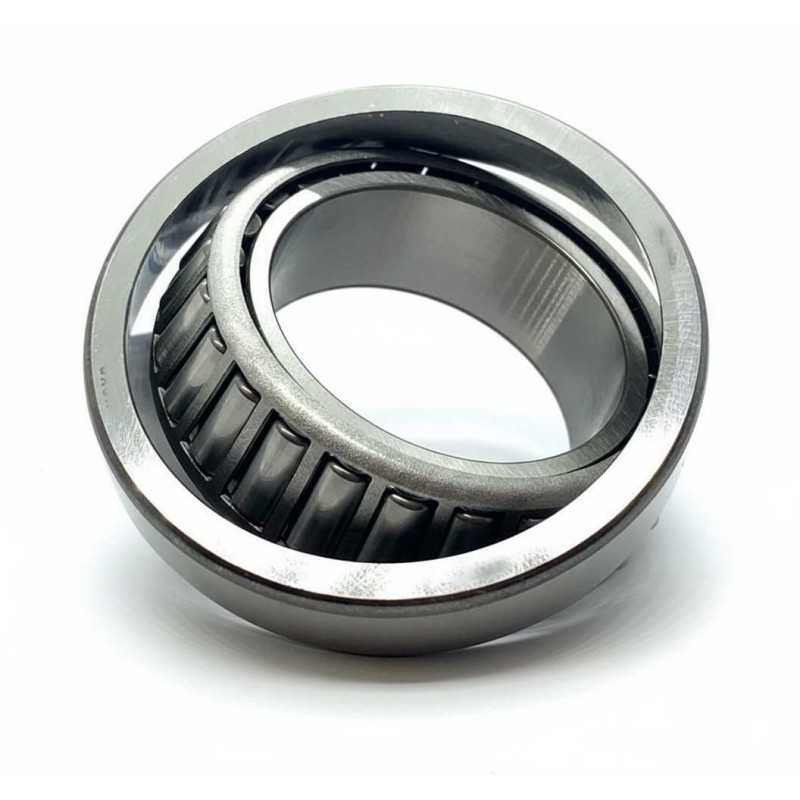

M86649R/86610 RICH – Single Row Tapered Roller Bearing – 30.162 x 64.292 x 21.433 mm

OE References:

• 7701020326 RENAULT
• 005103527 CLAAS
• 01175920 DANA SPICER
• DEUTZ AG AL161289 DEUTZ AG
• AL71169 JOHN DEERE
• AL79901 JOHN DEERE
• JD8267+JD8979 JOHN DEERE
• RE272374 JOHN DEERE
• 3310930M91 MASSEY FERGUSON
• MF 3310930M91 MASSEY FERGUSON
• V31792200 MASSEY FERGUSON
• X619066600000 MASSEY FERGUSON
• 36397 VALTRA

Technical Specifications:

• Type: Single row tapered roller bearing
• Brand: RICH
• Model Designation: M86649R/86610
• Inner Diameter (d): 30.162 mm
• Outer Diameter (D): 64.292 mm
• Total Width (T): 21.433 mm
• Inner Ring Width (B): 21.433 mm
• Outer Ring Width (C): 16.67 mm
• Rounding Radius (R1): 1.6 mm
• Weight: 0.349 kg
• Country of Origin: China

Product Details:

• Design: Single row tapered roller configuration.
• Components: Separate inner ring cone assembly and outer ring cup.
• Rounding Geometry: Features a 1.6 mm rounding radius specification.
• Dimensional Format: 30.162 mm inner diameter, 64.292 mm outer diameter, and 21.433 mm total width.
• Mass: 0.349 kg unit weight.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are provided solely for identification and do not imply affiliation with other manufacturers.
