HM212044/11 RICH 60,325x122,238x38,1

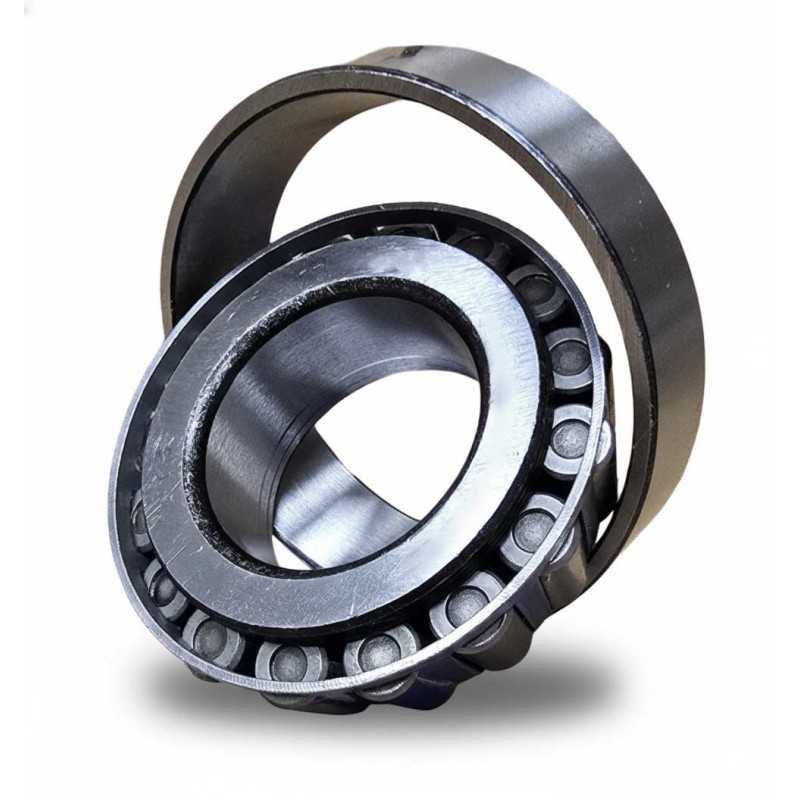

HM212044/11 RICH – Single Row Tapered Roller Bearing – 60.325 x 122.238 x 38.1 mm

Technical Specifications:

• Type: Single row tapered roller bearing
• Brand: RICH
• Model Designation: HM212044/11
• Inner Diameter (d): 60.325 mm
• Outer Diameter (D): 122.238 mm
• Width (T): 38.1 mm
• Inner Ring Width (B): 38.354 mm
• Outer Ring Width (C): 29.718 mm
• Weight: 2.082 kg
• Country of Origin: China

Construction Features:

• Component Design: The unit consists of a separable inner ring with a tapered roller assembly and a matching outer ring.
• Row Configuration: The internal arrangement features a single row of tapered rolling elements managed by a standard cage.
• Dimensional Profile: The structural layout utilizes a 60.325 mm bore, a 122.238 mm outside diameter, and a combined assembly width of 38.1 mm.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
