HM204049/10 RICH 45,987x90,975x32

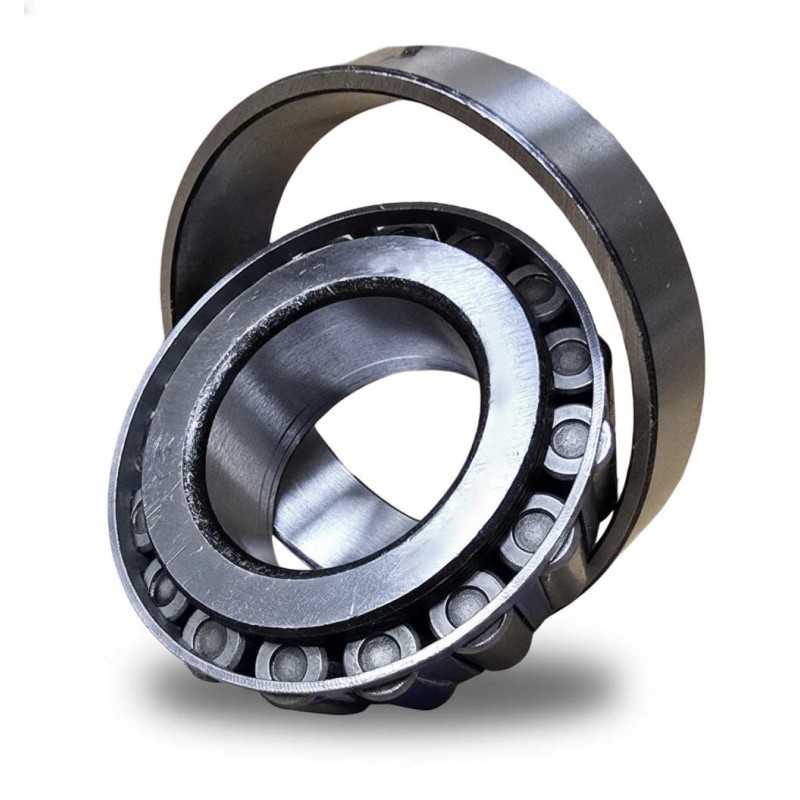

HM204049/10 RICH – Single Row Tapered Roller Bearing – 45.987 x 90.975 x 32 mm

Technical Specifications:

• Type: Single row tapered roller bearing
• Brand: RICH
• Model Designation: HM204049/10
• Inner Diameter (d): 45.987 mm
• Outer Diameter (D): 90.975 mm
• Width (T): 32 mm
• Inner Ring Width (B): 32 mm
• Outer Ring Width (C): 26.5 mm
• Weight: 0.926 kg
• Country of Origin: China

Construction Features:

• Component Design: The unit consists of a separable inner ring with a tapered roller assembly and a matching outer ring.
• Row Configuration: The internal arrangement features a single row of tapered rolling elements managed by a standard cage.
• Dimensional Profile: The structural layout utilizes a 45.987 mm bore, a 90.975 mm outside diameter, and a combined assembly width of 32 mm.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
