JM738249/210 RICH 190x260x46

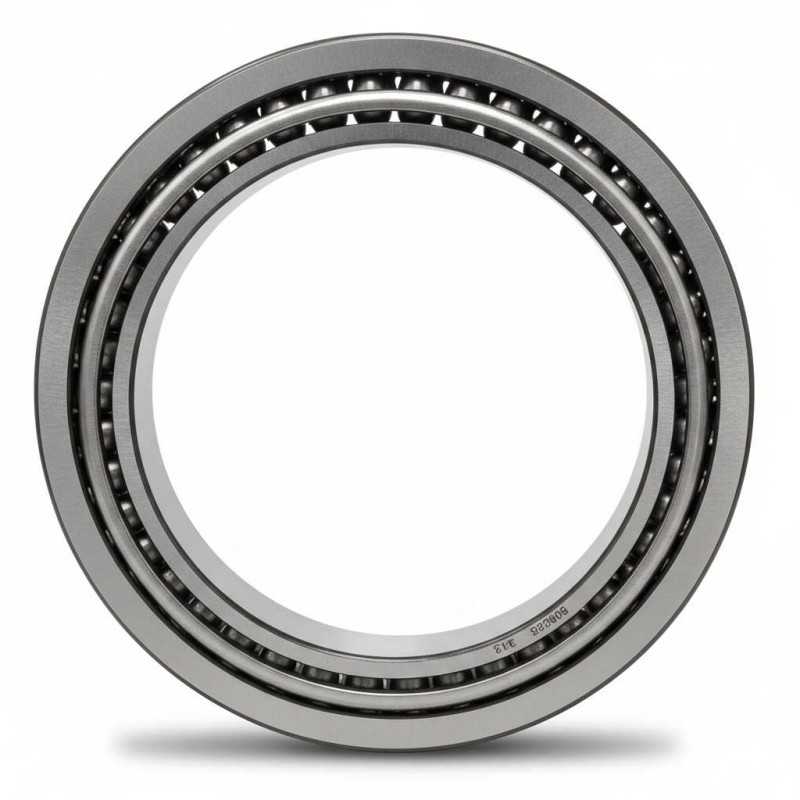

JM738249/210 RICH – Single Row Tapered Roller Bearing – 190 x 260 x 46 mm

Technical Specifications:

• Type: Single row tapered roller bearing
• Brand: RICH
• Model Designation: JM738249/210
• Inner Diameter (d): 190 mm
• Outer Diameter (D): 260 mm
• Width (T): 46 mm
• Inner Ring Width (B): 44 mm
• Outer Ring Width (C): 36.5 mm
• Weight: 7.14 kg
• Country of Origin: China

Construction Features:

• Component Design: The unit consists of a separable inner ring with a tapered roller assembly and a matching outer ring.
• Row Configuration: The internal arrangement features a single row of tapered rolling elements managed by a standard cage.
• Dimensional Profile: The structural layout utilizes a 190 mm bore, a 260 mm outside diameter, and a combined assembly width of 46 mm.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
