32005 RICH 25x47x15 32005 RICH
search
  • 32005 RICH 25x47x15 32005 RICH

32005 RICH 25x47x15

RICH
32005
€3.58
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

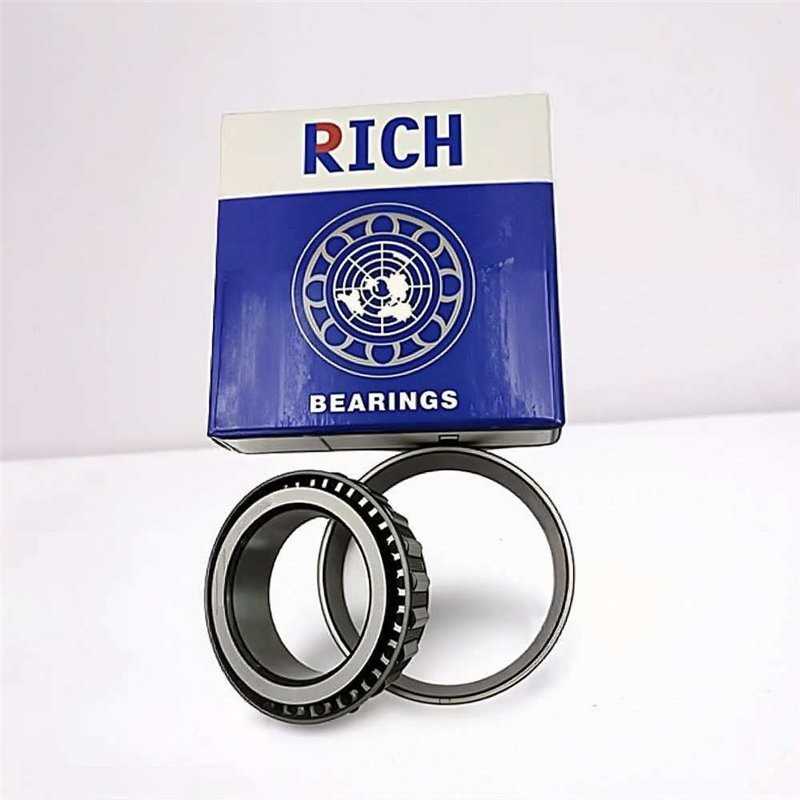

32005 RICH Single Row Tapered Roller Bearing - 25 x 47 x 15 mm

The 32005 RICH is a single row tapered roller bearing designed to accommodate combined radial and axial loads. This bearing has key dimensions of 25 mm inner diameter, 47 mm outer diameter, and a width (T) of 15 mm It weighs 0.115 kg and is made in China. This bearing is a replacement option for the OE part number 0010146181 (CLAAS). This bearing type, with its tapered rollers and conical raceways, is well-suited for applications requiring support for both high radial and axial loads in one direction. Due to its internal construction, single row tapered roller bearings are typically mounted in pairs with a second tapered roller bearing.

Key Specifications:

  • Bearing Type: Single Row Tapered Roller Bearing
  • Model:** 32005 RICH
  • Inner Diameter (d):** 25 mm
  • Outer Diameter (D):** 47 mm
  • Width (T):** 15 mm
  • Outer Ring Width (C):** 11.5 mm
  • Inner Ring Width:** 15 mm
  • Weight:** 0.115 kg
  • Country of Origin:** China
  • OE References:** 0010146181 (CLAAS)

Key Features:

  • Tapered Roller Design:** Optimized for combined radial and axial loads.
  • Separable Components:** The inner ring assembly (cone) and outer ring (cup) can be mounted separately.
  • Adjustable Clearance:** The axial clearance can be adjusted during mounting.
  • Robust Construction:** Capable of withstanding significant forces.
  • Versatile Application:** Used in various applications, including CLAAS machinery. Typically used in pairs.
  • Manufacturing Origin:** Made in China.

Data sheet

Inner Diameter
25
Outer Diameter
47
Width
15
Weight
0,115
Roller Rows
Single Row
Cage
Steel Cage
Category
Single Row Tapered Roller Bearing
