594A/592A RICH 95,25x152,4x39,688

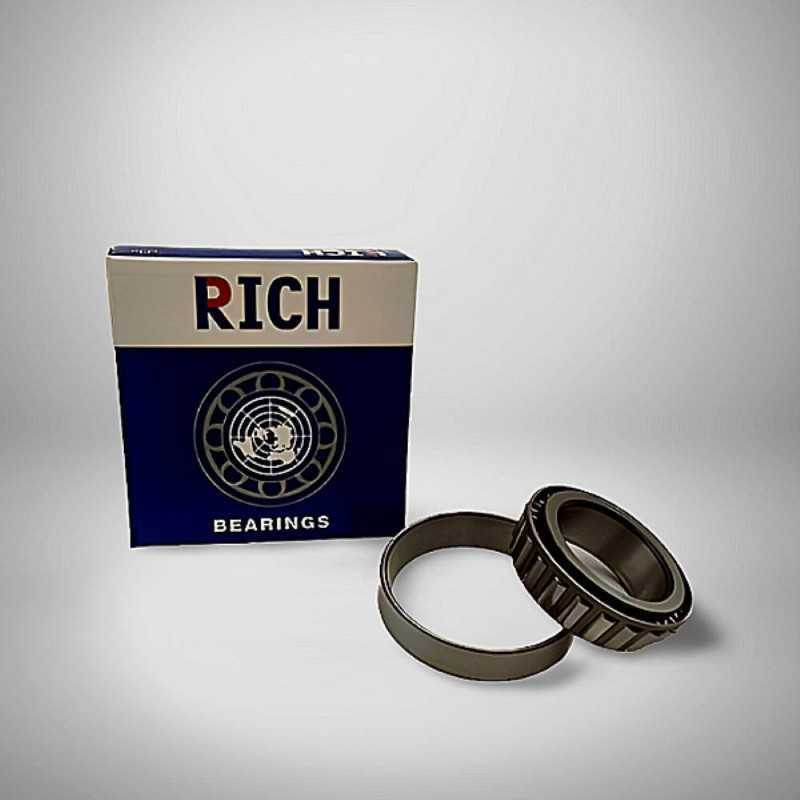

594A/592A RICH Single Row Tapered Roller Bearing – 95.25 x 152.4 x 39.688 mm – Heavy-Duty, Precision Engineered

Engineered for demanding applications, the 594A/592A RICH tapered roller bearing offers exceptional load-handling capacity and long-term reliability. Designed to manage both radial and axial forces simultaneously, this single row tapered roller bearing is the optimal solution for high-performance automotive, industrial, and agricultural systems operating under intense conditions.

It features a 95.25 mm inner diameter, 152.4 mm outer diameter, and an overall width (T) of 39.688 mm, ensuring a precise and robust fit. The bearing consists of a cone (inner ring with rollers and cage) and a cup (outer ring), with respective widths of 36.322 mm (inner) and 30.162 mm (outer). Carefully engineered rounding radii—R1: 5 mm, R2: 3.3 mm—enhance stress distribution and contribute to smoother rotation under load.

Manufactured by RICH in China to rigorous quality standards, this bearing weighs 2.559 kg. Its tapered design ensures accurate alignment and superior load support, making it ideal for wheel hubs, gearboxes, axles, and other rotating systems exposed to demanding mechanical forces.

Technical Specifications:

• Type: Single Row Tapered Roller Bearing
• Model: 594A/592A
• Brand: RICH
• Inner Diameter (d): 95.25 mm
• Outer Diameter (D): 152.4 mm
• Overall Width (T): 39.688 mm
• Outer Ring Width (C): 30.162 mm
• Inner Ring Width: 36.322 mm
• Rounding Radius (R1): 5 mm
• Rounding Radius (R2): 3.3 mm
• Country of Origin: China

Cross-Reference / Interchangeable With:

• FORD D7AH1244AA
• FORD TUAA1243A
• GM 9437934
• IVECO 503356156
• TIMKEN NP579116 / NP022042
• TIMKEN SET1138
• TIMKEN SET403
• VOLKSWAGEN 2W0501319
• VOLVO 183704
• VOLVO 8127818

Key Performance Advantages:

• Exceptional Load Management: Handles high radial, axial, and combined loads with ease.
• Tapered Roller Precision: Ensures accurate alignment and smooth, controlled motion under heavy forces.
• Industrial-Grade Construction: Built for longevity in high-stress applications such as axles, wheel hubs, and transmissions.
• Wide Compatibility: Cross-compatible with multiple OEM part numbers for convenient replacement.
• Quality You Can Rely On: RICH bearings are manufactured to strict quality standards for reliable, consistent performance.
