L610549/L610510 RICH 63,5x94,458x19,05 L610549/L610510 RICH
search
  • L610549/L610510 RICH 63,5x94,458x19,05 L610549/L610510 RICH

L610549/L610510 RICH 63,5x94,458x19,05

RICH
L610549/L610510
€8.88
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

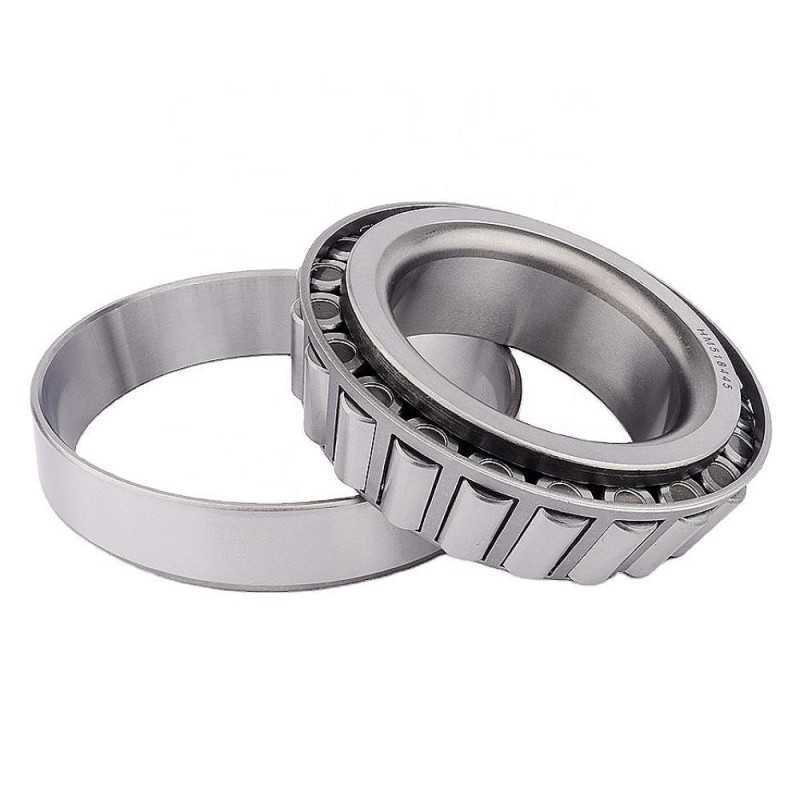

L610549/610510 RICH Single Row Tapered Roller Bearing - 63.5 x 94.458 x 19.05 mm

The L610549/610510 RICH is a single row tapered roller bearing designed to accommodate combined radial and axial loads. This bearing has key dimensions of 63.5 mm inner diameter, 94.458 mm outer diameter, and a width (T) of 19.05 mm. The outer ring width (C) is 15.083 mm and the inner ring width is also 19.05 mm. It weighs 0.46 kg and is made in China. This bearing serves as a replacement option for several OE part numbers, including 0011380870 (CLAAS) and 3011573X91 (MASSEY FERGUSON). This bearing type, with its tapered rollers and conical raceways, is well-suited for applications requiring support for both high radial and axial loads in one direction. Due to its internal construction, single row tapered roller bearings are typically mounted in pairs with a second tapered roller bearing.

Key Specifications:

  • Bearing Type: Single Row Tapered Roller Bearing
  • Model:** L610549/610510 RICH
  • Inner Diameter (d):** 63.5 mm
  • Outer Diameter (D):** 94.458 mm
  • Width (T):** 19.05 mm
  • Outer Ring Width (C):** 15.083 mm
  • Inner Ring Width:** 19.05 mm
  • Weight:** 0.46 kg
  • Country of Origin:** China
  • OE References:** 0011380870 (CLAAS), 3011573X91 (MASSEY FERGUSON)

Key Features:

  • Tapered Roller Design:** Optimized for combined radial and axial loads.
  • Separable Components:** The inner ring assembly (cone) and outer ring (cup) can be mounted separately.
  • Adjustable Clearance:** The axial clearance can be adjusted during mounting.
  • Robust Construction:** Capable of withstanding significant forces.
  • Versatile Application:** Used in various agricultural and industrial machinery, including models from CLAAS and MASSEY FERGUSON. Typically used in pairs.
  • Manufacturing Origin:** Made in China.

Data sheet

Inner Diameter
63,5
Outer Diameter
94.458
Width
19,05
Roller Rows
Single Row
Cage
Steel Cage
Category
Single Row Tapered Roller Bearing
