395S/394A RICH 66,675x110x22
Rating:
(0)
EUR €
- EUR €
- USD $

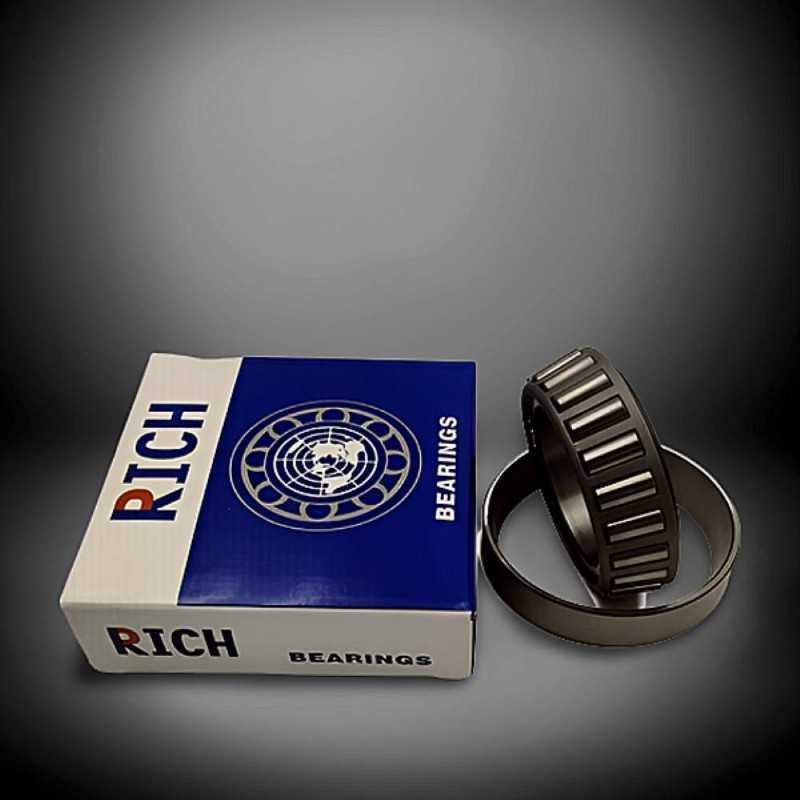

395S/394A RICH Single Row Tapered Roller Bearing - 66.675 x 110 x 22 mm
The 395S/394A RICH is a single row tapered roller bearing designed to accommodate combined radial and axial loads. This bearing has key dimensions of 66.675 mm inner diameter, 110 mm outer diameter, and a width (T) of 22 mm. The outer ring width (C) is 18.824 mm and the inner ring width is 21.996 mm. It features rounding radii R1 of 3.5 mm and R2 of 1.3 mm, weighs 0.788 kg, and is made in China. This bearing type, with its tapered rollers and conical raceways, is well-suited for applications requiring support for both high radial and axial loads in one direction. Due to its internal construction, single row tapered roller bearings are typically mounted in pairs with a second tapered roller bearing.
Key Specifications:
- Bearing Type: Single Row Tapered Roller Bearing
- Model:** 395S/394A RICH
- Inner Diameter (d):** 66.675 mm
- Outer Diameter (D):** 110 mm
- Width (T):** 22 mm
- Outer Ring Width (C):** 18.824 mm
- Inner Ring Width:** 21.996 mm
- Rounding Radius (R1):** 3.5 mm
- Rounding Radius (R2):** 1.3 mm
- Weight:** 0.788 kg
- Country of Origin:** China
Key Features:
- Tapered Roller Design:** Optimized for combined radial and axial loads.
- Separable Components:** The inner ring assembly (cone) and outer ring (cup) can be mounted separately.
- Adjustable Clearance:** The axial clearance can be adjusted during mounting.
- Robust Construction:** Capable of withstanding significant forces.
- Versatile Application:** Typically used in pairs.
- Manufacturing Origin:** Made in China.
Data sheet
Inner Diameter
66,675
Outer Diameter
110
Width
22
Roller Rows
Single Row
Cage
Steel Cage
Category
Single Row Tapered Roller Bearing
