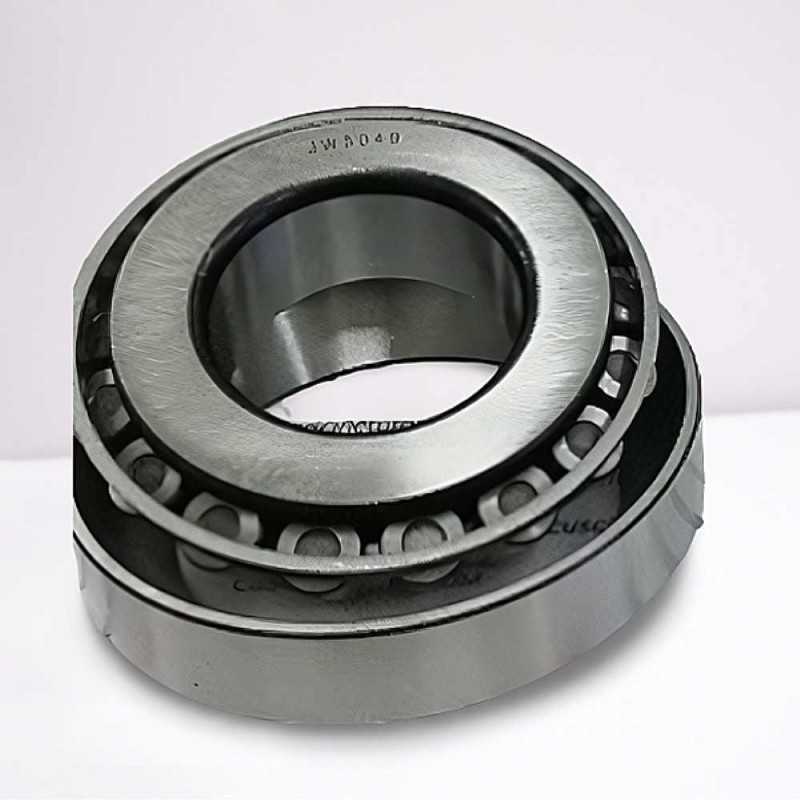

JW 5049/10 RICH Single Row Tapered Roller Bearing - 50 x 105 x 32 mm

The JW 5049/10 RICH is a single row tapered roller bearing designed to accommodate combined radial and axial loads. This bearing has key dimensions of 50 mm inner diameter, 105 mm outer diameter, and a width (T) of 32 mm. The outer ring width (C) is 22 mm and the inner ring width is 29 mm. It weighs 1.26 kg and is made in China. This bearing is known to be used in equipment from various manufacturers, as indicated by the OE references including CLAAS (0011342880), FENDT (3011561X91, X619070201001, X619076000005), Ford (83961659), JOHN DEERE (AT148947), and ZF (0750117355). This bearing type, with its tapered rollers and conical raceways, is well-suited for applications requiring support for both high radial and axial loads in one direction. Due to its internal construction, single row tapered roller bearings are typically mounted in pairs with a second tapered roller bearing.

Key Specifications:

  • Bearing Type: Single Row Tapered Roller Bearing
  • Model:** JW 5049/10 RICH
  • Inner Diameter (d):** 50 mm
  • Outer Diameter (D):** 105 mm
  • Width (T):** 32 mm
  • Outer Ring Width (C):** 22 mm
  • Inner Ring Width:** 29 mm
  • Weight:** 1.26 kg
  • Country of Origin:** China
  • OE References:** 0011342880 (CLAAS), 3011561X91, X619070201001, X619076000005 (FENDT), 83961659 (Ford), AT148947 (JOHN DEERE), 0750117355 (ZF)

Key Features:

  • Tapered Roller Design:** Optimized for combined radial and axial loads.
  • Separable Components:** The inner ring assembly (cone) and outer ring (cup) can be mounted separately.
  • Adjustable Clearance:** The axial clearance can be adjusted during mounting.
  • Robust Construction:** Capable of withstanding significant forces.
  • Versatile Application:** This bearing is known to be used in equipment from CLAAS, FENDT, Ford, JOHN DEERE, and ZF. Typically used in pairs.
  • Manufacturing Origin:** Made in China.

Data sheet

Inner Diameter
50
Outer Diameter
105
Width
32
Roller Rows
Single Row
Cage
Steel Cage
Category
Single Row Tapered Roller Bearing
