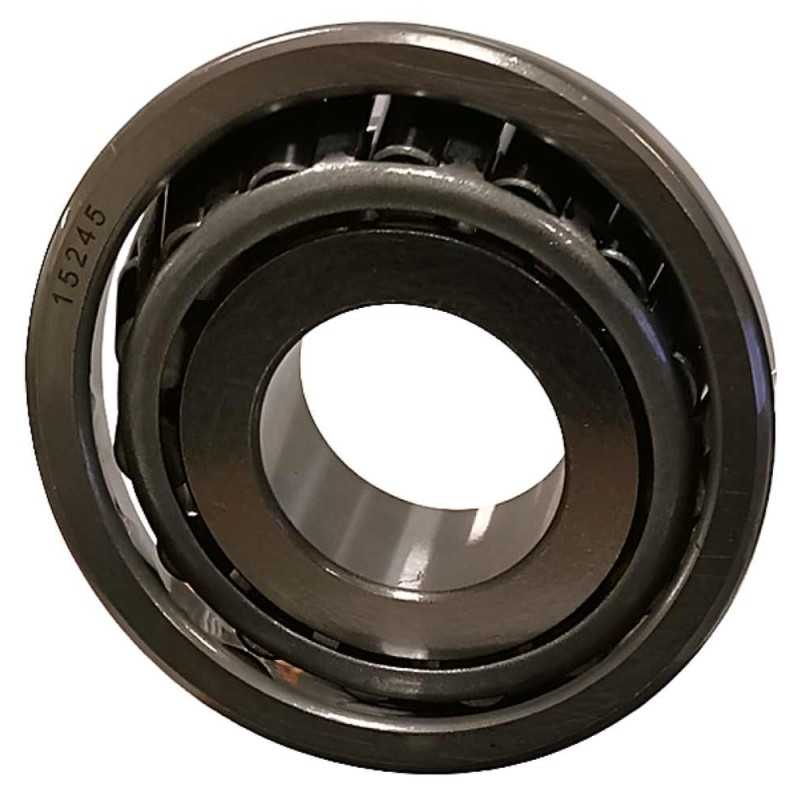

15101/15245 RICH Single Row Tapered Roller Bearing - 25.4 x 62 x 19.05 mm

Technical Specifications:

  • Bearing Type: Single Row Tapered Roller Bearing
  • Model Designation: 15101/15245
  • Brand: RICH
  • Inner Diameter (d): 25.4 mm
  • Outer Diameter (D): 62 mm
  • Width (T): 19.05 mm
  • Outer Ring Width (C): 14.288 mm
  • Inner Ring Width: 20.638 mm
  • Rounding Radius (R1): 0.8 mm
  • Weight: 0.324 kg
  • Country of Manufacture: China

The 15101/15245 RICH single row tapered roller bearing, meticulously manufactured by RICH in China, is designed to accommodate combined radial and axial loads efficiently. Its tapered rollers and conical raceways are perfectly suited for applications requiring robust support for both high radial and axial forces in one direction. With precise dimensions of 25.4 mm inner diameter, 62 mm outer diameter, and a total width (T) of 19.05 mm, this RICH bearing offers reliable performance. The outer ring has a width (C) of 14.288 mm and the inner ring has a width of 20.638 mm, with a rounding radius (R1) of 0.8 mm. Weighing 0.324 kg, due to their internal construction, single row tapered roller bearings are often installed in conjunction with another tapered roller bearing in an opposed arrangement to effectively manage axial loads in both directions.

Key Performance Advantages:

  • Optimized Load Handling: Tapered roller design expertly manages combined radial and axial loads.
  • Separable Components: Inner ring assembly (cone) and outer ring (cup) can be mounted independently for flexible installation.
  • Adjustable Clearance: Axial clearance is adjustable during mounting, allowing for precise system optimization.
  • Robust Construction: Engineered to withstand significant forces, ensuring high durability and reliability.
  • Optimal Load Distribution: Often mounted in conjunction with another tapered roller bearing to handle axial loads effectively in both directions.
  • RICH Quality: Produced in China to high manufacturing standards, guaranteeing dependable performance.

Data sheet

Inner Diameter
25,4
Outer Diameter
62
Width
19,05
Weight
0,324
Roller Rows
Single Row
Cage
Steel Cage
Category
Single Row Tapered Roller Bearing
