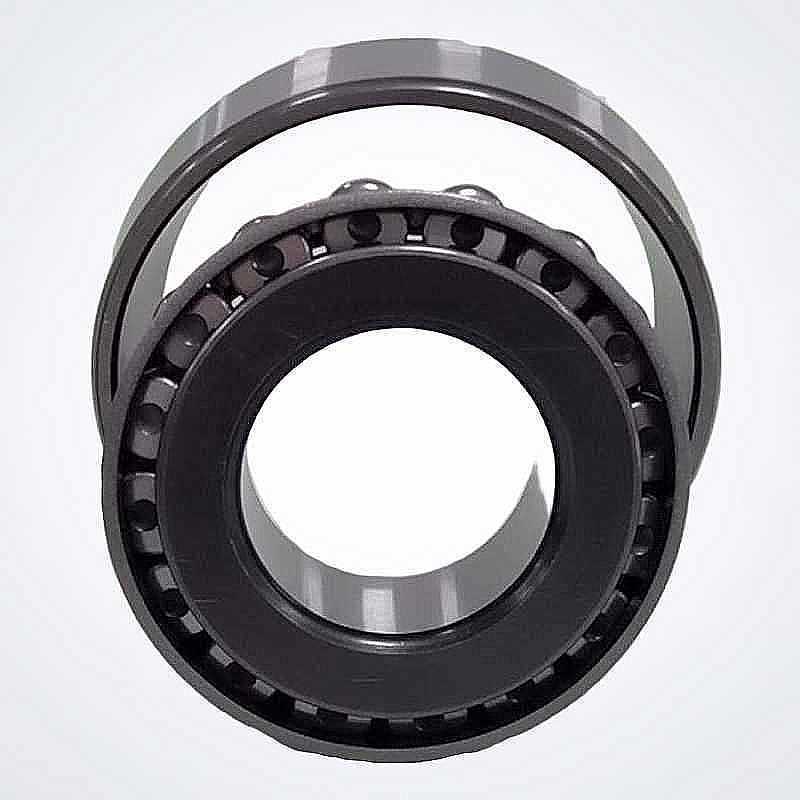

JLM710949C/10 RICH | Single Row Tapered Roller Bearing 65 x 105 x 24 mm

OE References:

• FENDT: X623187710000

Technical Specifications:

• Product Type: Single Row Tapered Roller Bearing
• Model Designation: JLM710949C / JLM710910
• Brand: RICH
• Bore Diameter (d): 65 mm
• Outer Diameter (D): 105 mm
• Total Width (T): 24 mm
• Inner Ring Width (B): 23 mm
• Outer Ring Width (C): 18.5 mm
• Rounding Radius (R1): 2.3 mm
• Weight: 0.77 kg
• Country of Origin: China

The JLM710949C/10 RICH is a high-precision single row tapered roller bearing designed to handle demanding combined radial and axial loads. Featuring a 65 mm bore and 105 mm outer diameter, this metric J-series bearing is engineered for applications requiring high structural stiffness and precise rotational accuracy in restricted spaces.

The internal geometry utilizes tapered rollers and raceways arranged to ensure that resultant loads are distributed uniformly across the contact surfaces. This design significantly reduces frictional torque and heat generation during operation. The separable construction — consisting of the cone (inner ring assembly) and the cup (outer ring) — allows for independent mounting and facilitates the precise adjustment of internal clearance or preload, which is essential for the performance of high-torque drivetrain components.

Built with high-grade steel and featuring a precision-ground 2.3 mm rounding radius (R1) for optimal shaft seating, the JLM710949C/10 RICH provides exceptional durability. It serves as a reliable replacement for specialized agricultural and industrial equipment, including Fendt machinery.

Key Performance Advantages:

• High Load Capacity: Specifically optimized to manage simultaneous radial and thrust loads in one direction.
• Separable Component Design: Simplifies mounting and inspection in complex mechanical housings.
• Precision Metric Engineering: J-series design ensures a perfect aftermarket fit for standardized industrial assemblies.
• Enhanced Thermal Stability: Optimized roller-to-raceway contact reduces friction and extends lubricant life.
• RICH Engineering Standard: Manufactured to exacting tolerances for vibration-free performance in heavy-duty cycles.

Typical Applications:

• Agricultural machinery (Tractors, harvesters, and Fendt drivetrain units).
• Automotive differential and transmission assemblies.
• Industrial gearboxes and high-torque speed reducers.
• Heavy-duty vehicle wheel hubs and axle support systems.

Transparency Note: This product is manufactured under the RICH brand. All dimensions, model references, and technical data are provided strictly for identification and compatibility purposes and do not imply affiliation, authorization, or endorsement by the referenced manufacturers.
