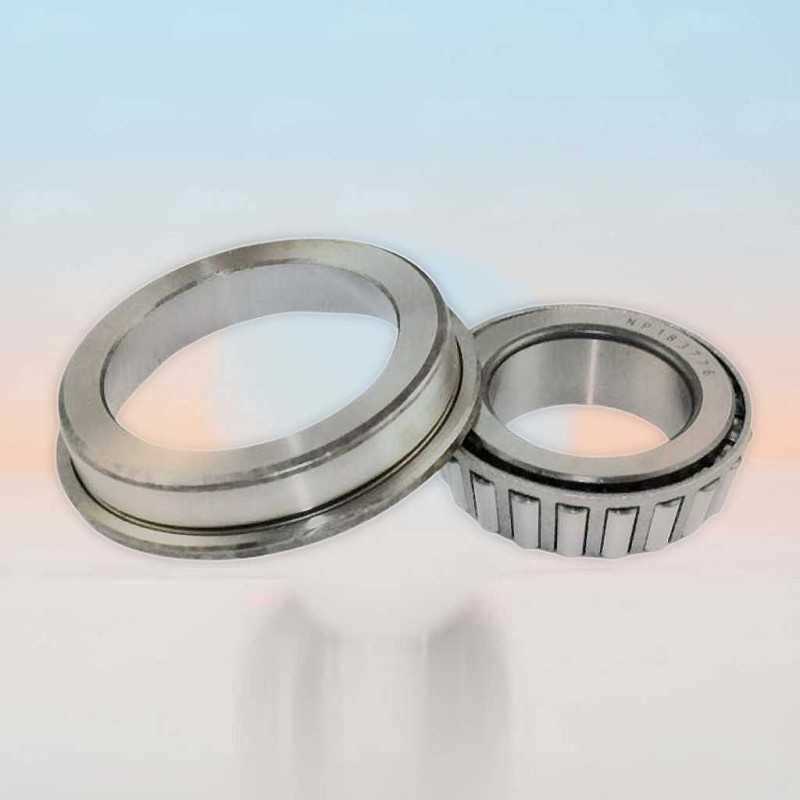

NP183776/NP693218 RICH Tapered Roller Bearing with Flange – 28.5 × 56.56 × 5.5 mm
OE References:
Technical Specifications:
- Brand: RICH
- Type: Tapered roller bearing with flange
- Model: NP183776/NP693218 RICH
- Inner Diameter (d): 28.5 mm
- Outer Diameter (D): 56.56 mm
- Total Width (T): 5.5 mm
- Inner Ring Width (B): 14.73 mm
- Outer Ring Width (C): 12 mm
- Weight: 0.188 kg
- Country of Origin: China
Performance Characteristics:
- Structural Layout: Specialized tapered roller bearing featuring a flanged outer ring for precise axial location within the housing.
- Internal Geometry: Engineered to manage combined radial and axial thrust loads in compact automotive transmissions.
- Material Type: High-strength bearing steel optimized for durability and load distribution.
- Dimensional Format: 28.5 × 56.56 × 5.5 mm flanged configuration specialized for Fiat drivetrain systems.
Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
