LR5008-NPPU RICH 40x75x21,9 LR5008-NPPU RICH
zoom_out_map
LR5008-NPPU RICH 40x75x21,9 LR5008-NPPU RICH

LR5008-NPPU RICH 40x75x21,9

Type: Track Roller
Model: LR5008-NPPU RICH
Bore: 40 mm
Profile: Rounded
Brand: RICH
Origin: China
RICH
LR5008-NPPU
€13.86
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

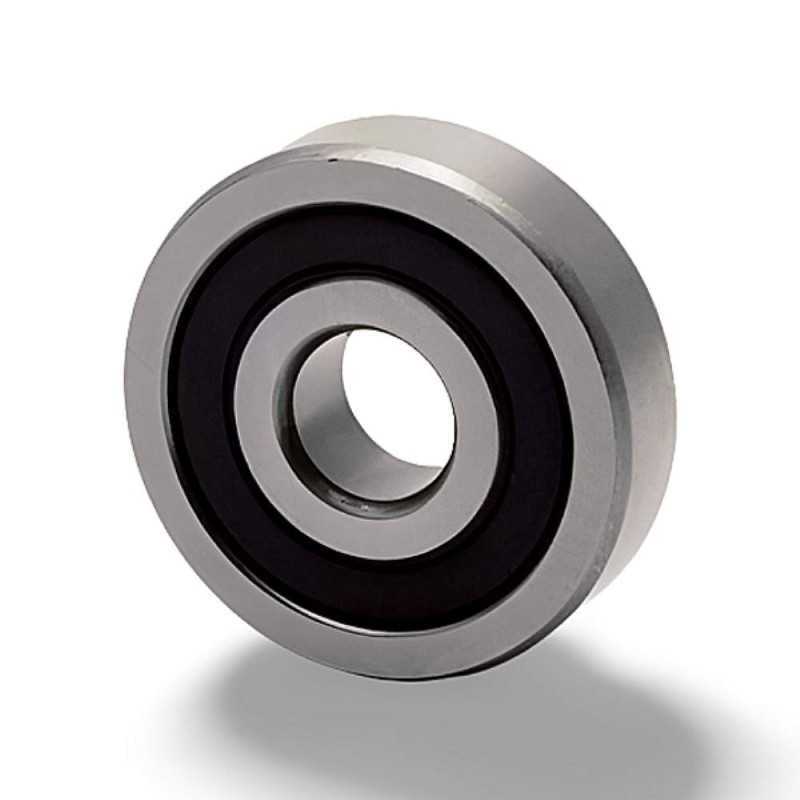

LR5008-NPPU RICH Track Roller - 40 x 75 x 21.9 mm

Technical Specifications:

  • Catalog Code: LR5008-NPPU RICH
  • Brand: RICH
  • Type: Track roller (Double row ball bearing design)
  • Inner Diameter (d): 40 mm
  • Outer Diameter (D): 75 mm
  • Width (B): 21.9 mm
  • Outer Ring Profile: Rounded / Crowned
  • Sealing: NPPU (Double-sided rubber contact seals)
  • Weight: 0.392 kg
  • Country of Origin: China

Key Performance Advantages:

  • Crowned Outer Ring: The rounded outer profile reduces edge stresses when the roller is subject to tilting or misalignment relative to the track.
  • Double Row Internal Geometry: Designed with a double row of balls to handle higher radial loads and provide better stability compared to single row rollers.
  • NPPU Sealing System: High-quality rubber contact seals on both sides ensure maximum protection against contamination while retaining grease in challenging environments.
  • Heavy-Duty Outer Ring: Features a thick-walled outer ring specifically engineered to accommodate high rolling loads and heavy impact stresses.

Transparency Note: This product is manufactured under the RICH brand. The code LR5008-NPPU is used for identification purposes and does not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
40
Outer Diameter
75
Width
21,9
