NUKR47 X RICH 20x47x24 NUKR47X RICH
search
  • NUKR47 X RICH 20x47x24 NUKR47X RICH

NUKR47 X RICH 20x47x24

Optimize motion control with the NUKR47.X RICH stud type track roller.

RICH
NUKR47X
€15.75
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

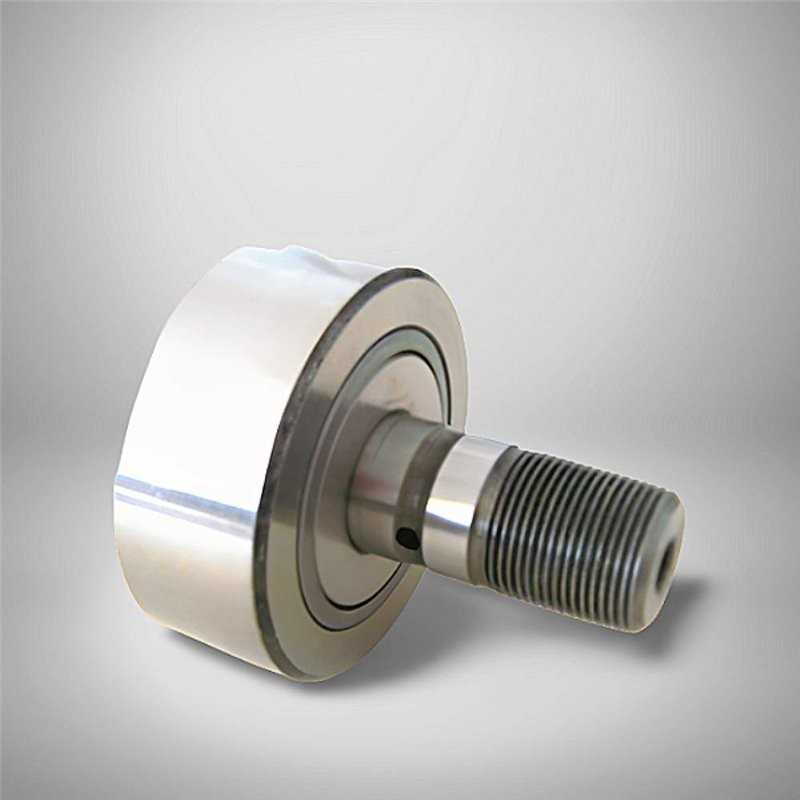

NUKR47.X RICH Stud Type Track Roller - 20 x 47 x 24 mm, Sealed

Technical Specifications:

  • Bearing Type: Stud Type Track Roller, Concentric Stud
  • Model Designation: NUKR47.X
  • Brand: RICH
  • Dimensions: 20 x 47 x 24 mm
  • Inner Diameter (d): 20 mm
  • Outer Diameter (D): 47 mm
  • Width (B): 24 mm
  • Bearing Length (B1): 66 mm
  • Cage Type: None (Full Complement)
  • Rounded Outer Ring: No (Cylindrical)
  • Sealing: Labyrinths on both sides (for higher temperatures and less friction)
  • Thread: M20x1.5
  • Weight: 0.396 kg
  • Country of Manufacture: China

The NUKR47.X RICH stud type track roller, meticulously manufactured by RICH in China, is engineered for precise motion control and reliable performance in demanding industrial applications. With precise dimensions of 20 mm inner diameter, 47 mm outer diameter, and a width of 24 mm, this track roller has an overall bearing length of 66 mm and features an M20x1.5 thread for secure mounting. It is designed with a cylindrical outer ring, making it suitable for direct running on flat raceway surfaces, and features a full complement of rolling elements, maximizing its load-carrying capacity. Equipped with labyrinths on both sides, this track roller is optimized for higher temperatures and reduced friction, ensuring effective contamination protection and extended service life. Weighing 0.396 kg, the NUKR47.X RICH track roller provides consistent and long-lasting operation in critical machinery.

Key Performance Advantages:

  • Concentric Stud Design: Ensures high precision and ease of installation.
  • Cylindrical Outer Ring: Optimized for direct running on flat raceway surfaces.
  • Full Complement Design: Maximizes load-carrying capacity for demanding applications.
  • Advanced Labyrinth Seals: Provides effective sealing for higher temperatures and reduced friction.
  • High Radial Load Capacity: Engineered for robust performance in track and cam mechanisms.
  • Precision Thread (M20x1.5): Ensures secure and stable mounting.
  • RICH Quality: Manufactured in China to high standards, ensuring optimal performance.

Data sheet

Inner Diameter
20
Outer Diameter
47
Width
24
Weight
0,396
