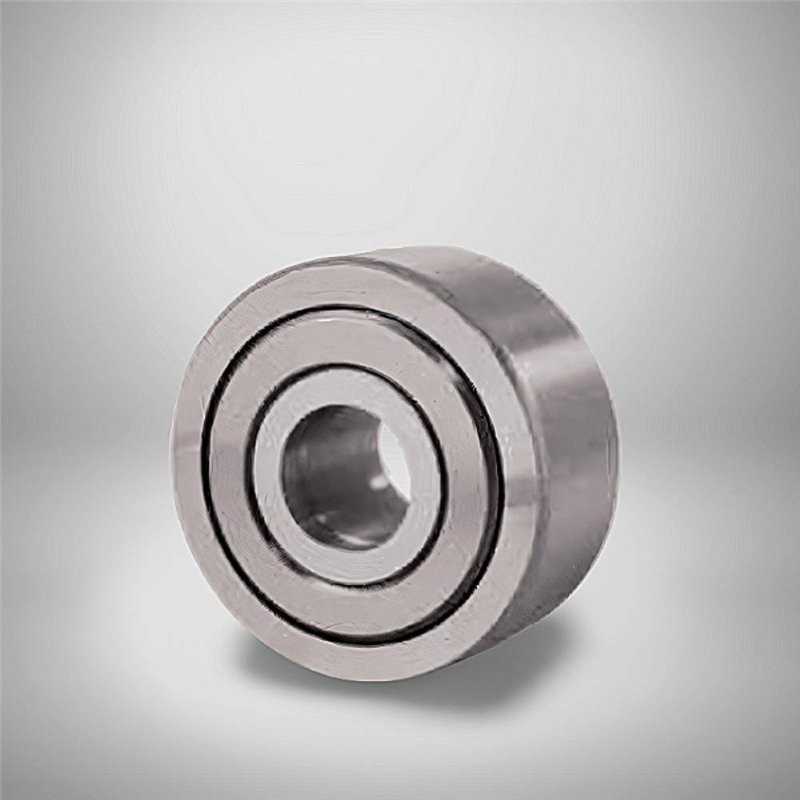

NATV 5-PP RICH Yoke Roller - 5 x 16 x 12 mm
Technical Specifications:
- Brand: RICH
- Type: Yoke Roller (Cam Follower without Stud)
- Model: NATV 5-PP
- Dimensions: 5 x 16 x 12 mm
- Bore Diameter (d): 5 mm
- Outer Diameter (D): 16 mm
- Overall Width (B): 12 mm
- Outer Ring Width (C): 11 mm
- Weight: 0.019 kg
- Sealing: Double-sided contact rubber seals (PP)
- Cage: Full Complement (No Cage)
- Country of Origin: China
The NATV 5-PP RICH is a miniature Yoke Roller designed for track guidance and cam mechanisms where extremely high load capacity is required in a small form factor. This model features a full complement of needle rollers (no cage), which maximizes the internal space to fit the largest number of rolling elements possible, significantly boosting its load ratings. The yoke roller is equipped with double-sided contact rubber seals (PP), which protect the full complement roller set from debris, ensuring the bearing is highly reliable and virtually maintenance-free. With precise dimensions of 5 x 16 x 12 mm, the NATV 5-PP RICH is an ideal choice for compact, highly-stressed linear motion systems.
Key Performance Advantages:
- Maximum Load Capacity: The full complement (no cage) design provides the highest possible load rating for its compact size.
- Effective Sealing (PP): Double-sided contact rubber seals provide robust protection against external contaminants and conserve internal lubrication.
- Compact and Robust: Designed with a thick-walled outer ring to withstand the shock loads typical of tracking applications in limited space.
- Precision Guidance: Delivers accurate and stable rolling contact for complex mechanical systems.
Data sheet
Inner Diameter
5
Outer Diameter
16
Width
12
Weight
0,019
