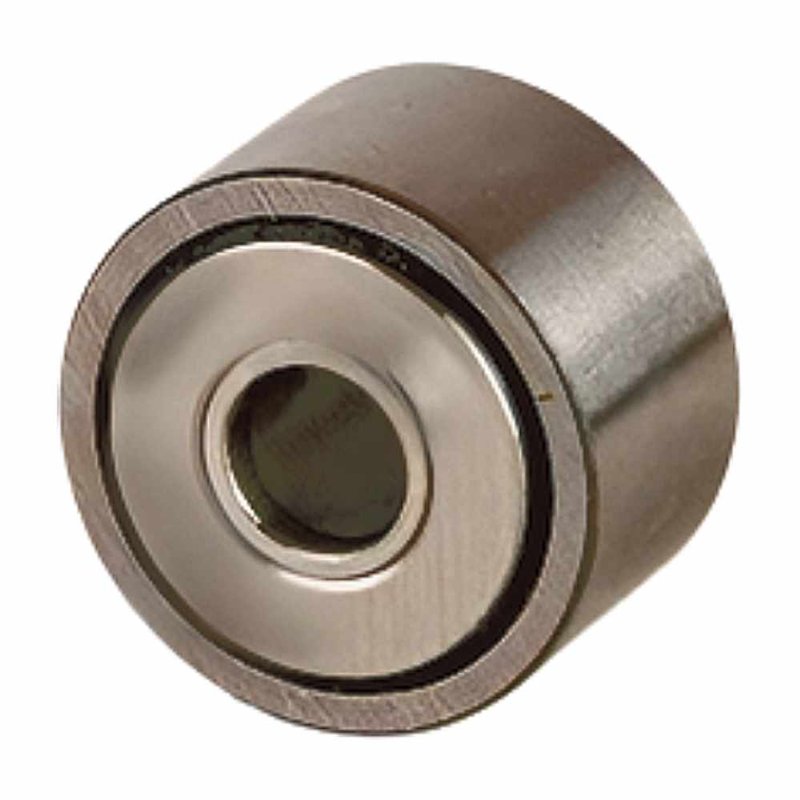

NART8UUVX RICH Yoke Roller - 8 x 24 x 15 mm

The NART8UUVX RICH is a heavy-duty yoke roller specifically designed for applications requiring high radial load capacity on flat running surfaces. This bearing is a full complement design, which means it has no cage and is filled with the maximum number of rollers, allowing it to withstand significantly higher loads than caged counterparts. It features a cylindrical outer ring, which provides maximum contact with the track, ensuring high load distribution and reduced stress. The double-sided rubber contact seals offer excellent protection against the ingress of dirt, dust, and moisture, ensuring the bearing's longevity and smooth operation in demanding environments.

Technical Specifications:

  • Brand: RICH
  • Type: Yoke Roller
  • Dimensions: 8 x 24 x 15 mm
  • Outer Ring Width (C): 14 mm
  • Weight: 0.043 kg
  • Cage: None (Full Complement)
  • Outer Ring Profile: (Cylindrical)
  • Sealing: Double-sided rubber, contact
  • Country of Origin: China

Key Performance Advantages:

  • Extremely High Load Capacity: The full complement design allows for maximum radial load resistance on flat tracks.
  • Effective Sealing: Double-sided contact seals provide robust protection against contaminants, extending service life.
  • Robust Construction: Built to withstand rigorous applications with its cage-less, heavy-duty design.
  • Optimized for Flat Tracks: The cylindrical outer ring is ideal for applications where a large contact area is desired.

Data sheet

Inner Diameter
8
Outer Diameter
24
Width
15
Category
Yoke Roller
