83A693A RICH 30x47x18
Rating:
(0)
EUR €
- EUR €
- USD $

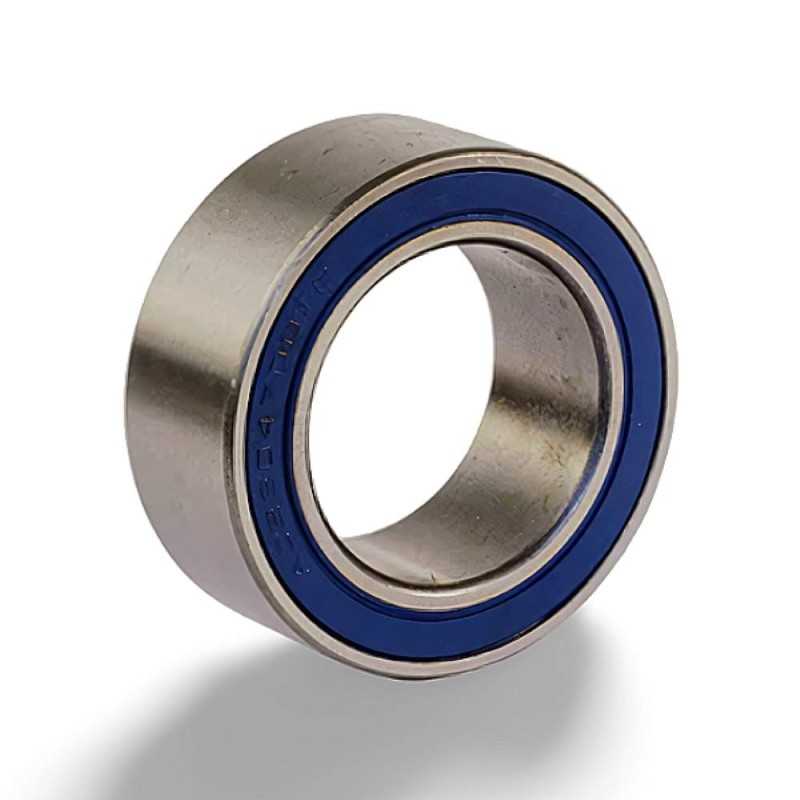

83A693A RICH Double Row Angular Contact Air Conditioner Bearing - 30 x 47 x 18 mm, C3 Clearance
The 83A693A RICH is a double row angular contact ball bearing specifically designed as an air conditioner bearing. It features C3 clearance, which is greater than normal, and double-sided rubber contact seals (2RS) to protect against contaminants and retain lubricant. It has key dimensions of 30 mm inner diameter, 47 mm outer diameter, and a width of 18 mm. This bearing weighs approximately 0.094 kg and is made in China.
Known OE References: Cargo 250994, Koyo 83A693CS30, Nachi 30BGS04S8G-2DS, Nachi 30BG04S16G-2DSTF, NSK 30BD4718DDUKX, NSK 30BD219T12DDU
Key Specifications:
- Type:** Double Row Angular Contact Ball Bearing
- Model:** 83A693A RICH
- Inner Diameter (d): 30 mm
- Outer Diameter (D): 47 mm
- Width (B): 18 mm
- Clearance:** C3 (Greater than Normal)
- Sealing:** Double-sided rubber, contact (2RS)
- Weight:** 0.094 kg
- Country of Origin:** China
- Product Feature:** Air Conditioner Bearing
- Known OE References:** Cargo 250994, Koyo 83A693CS30, Nachi 30BGS04S8G-2DS, Nachi 30BG04S16G-2DSTF, NSK 30BD4718DDUKX, NSK 30BD219T12DDU
Key Features:
- Double Row Design:** Provides increased load carrying capacity compared to single row bearings.
- Angular Contact:** Optimized for combined radial and axial loads.
- C3 Clearance:** Provides a larger internal clearance, suitable for applications with higher operating temperatures or press fits.
- Double Rubber Seals (2RS): Offers excellent protection against dust and moisture, extending bearing life.
- Specifically for Air Conditioners:** Designed to meet the demands of air conditioning applications.
- Manufacturing Origin:** Made in China.
Data sheet
Inner Diameter
30
Outer Diameter
47
Width
18
Weight
0,094
Ball Rows
Double Row
Category
Double Row Angular-Contact Ball Bearing
