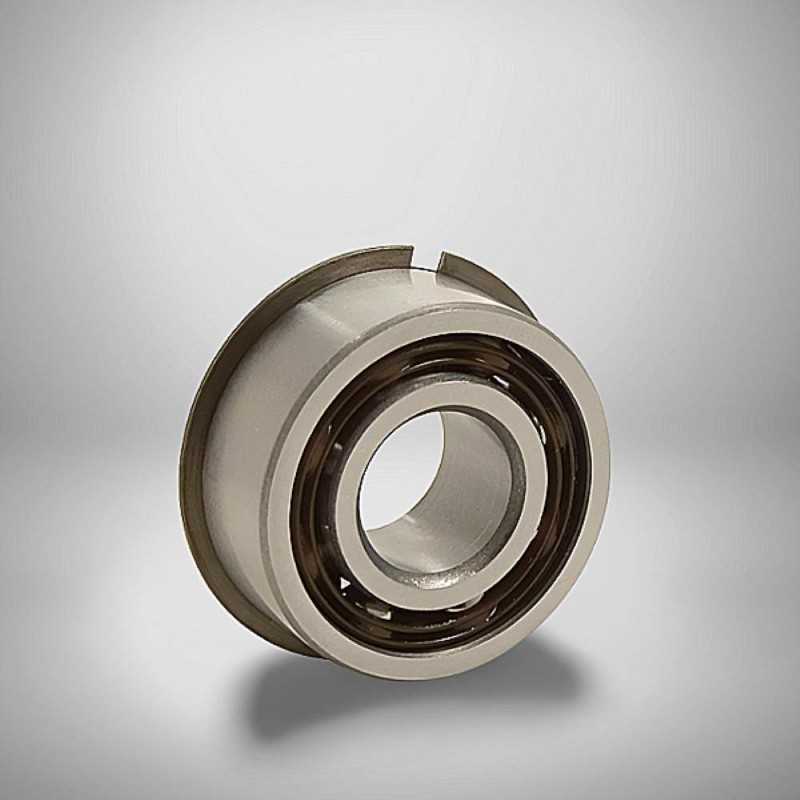

The 5308NR RICH Double Row Angular-Contact Ball Bearing (40 x 90 x 36.5 mm) handles high combined loads and features an **integrated snap ring groove** for simplified axial mounting.
The 5308NR RICH is a robust **Double Row Angular-Contact Ball Bearing** designed to manage high combined loads. Manufactured by RICH, this open-type bearing features two rows of balls and raceways arranged to accept significant radial loads alongside substantial bidirectional axial forces. Its design provides excellent rigidity and precise guidance for shafts, making it crucial for demanding industrial applications.
The key feature of the **5308NR** model is the **snap ring groove (NR)** machined into the outer ring. This groove simplifies the mounting process by allowing the bearing to be axially located within its housing using a snap ring (not included), eliminating the need for complex cover plates or shoulders. With core dimensions of 40 x 90 x 36.5 mm and a durable **steel cage**, this bearing ensures high performance and reliable operation across gear drives, industrial pumps, and machine tool spindles.
The 5308NR bearing is manufactured by RICH in China to meet stringent quality and dimensional standards, ensuring reliable performance and precision.
Data sheet
The 5308NR RICH Double Row Angular-Contact Ball Bearing (40 x 90 x 36.5 mm) handles high combined loads and features an **integrated snap ring groove** for simplified axial mounting.
