F-234977.12 RICH 40,483x93x38 F-234977.12 RICH
zoom_out_map
F-234977.12 RICH 40,483x93x38 F-234977.12 RICH

F-234977.12 RICH 40,483x93x38

Type: Double Row Angular Contact Ball Bearing
Model: RICH F-234977.12
Dimensions: 40.483 x 93 x 38 mm
Brand: RICH
Origin: China
RICH
F-234977.12
€35.90
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

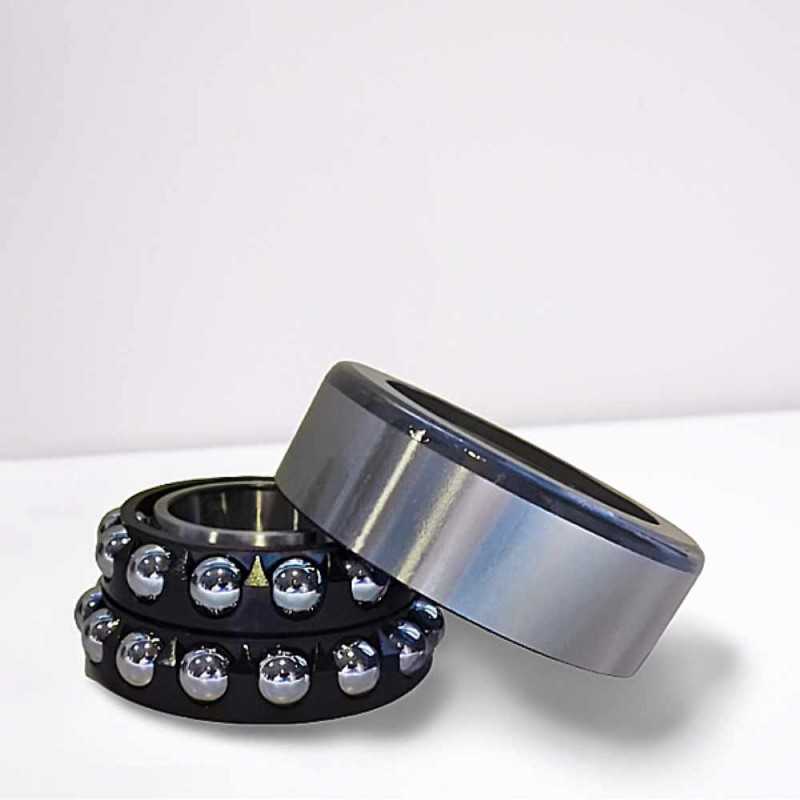

F-234977.12 RICH Double Row Angular Contact Ball Bearing – 40.483 × 93 × 38 mm

Oe References:

  • BMW: 7516324, 7578307

Technical Specifications:

  • Brand: RICH
  • Type: Double row angular contact ball bearing
  • Model: F-234977.12 RICH
  • Inner Diameter (d): 40.483 mm
  • Outer Diameter (D): 93 mm
  • Width (B): 38 mm
  • Cage Material: Steel
  • Sealing: None (Open)
  • Weight: 1.1 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Layout: Double row radial ball assembly with opposed angular contact raceways.
  • Internal Geometry: Ball sets configured to accommodate combined radial and bidirectional axial loads.
  • Material Type: High‑carbon chrome bearing steel.
  • Dimensional Format: 40.483 × 93 × 38 mm configuration.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references, if present, are provided solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
40,483
Outer Diameter
93
Width
38
Weight
1,11
Ball Rows
Double Row
Clearance
CN (Normal)
