  • DAC42760040/37 RICH 42x76x40 DAC42760040/37 RICH

DAC42760040/37 RICH 42x76x40

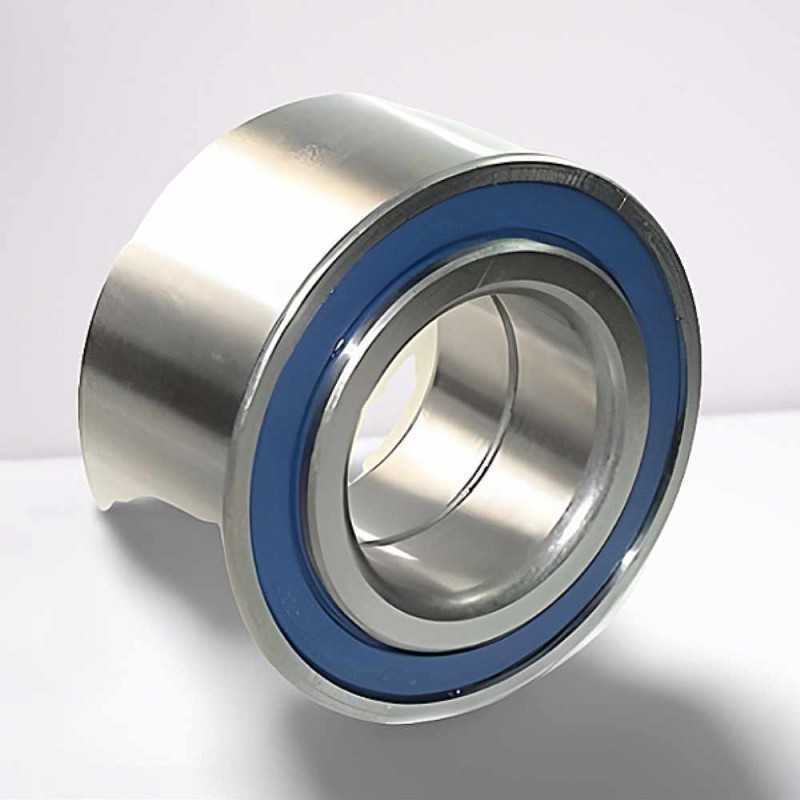

The DAC42760040/37 RICH Double Row Angular-Contact Ball Bearing (42 x 76 x 40 mm) features double-sided rubber contact seals (2RS) and handles high combined loads. Interchangeable with Chrysler OE Reference 4293185.

RICH
DAC42760040/37
€11.24
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

DAC42760040/37 RICH Double Row Angular-Contact Ball Bearing - 42 x 76 x 40 mm


OE References:

  • Chrysler 05212914 / 4293185
  • FAG 547059A
  • Koyo DAC4276402RSCS55
  • SKF BAHB309796BA / B42
  • Timken 513006 / JRM4042-90UA1

Technical Specifications:

  • Brand: RICH
  • Type: Double Row Angular-Contact Ball Bearing
  • Model: DAC42760040/37
  • Inner Diameter (d): 42 mm
  • Outer Diameter (D): 76 mm
  • Width (B): 40 mm
  • Dimensions: 42 x 76 x 40 mm
  • Outer Ring Width (C): 37 mm
  • Sealing: Double-sided rubber, contact (2RS)
  • Weight: 0.689 kg
  • Country of Origin: China

Product Overview

The DAC42760040/37 RICH is a heavy-duty, integrated Double Row Angular-Contact Ball Bearing specifically engineered for automotive wheel hub applications. Manufactured by RICH, this unit delivers exceptional structural integrity, crucial for vehicle safety. It is designed to efficiently manage the combined heavy radial loads and the critical bidirectional axial thrust that wheel hubs constantly endure.

Featuring double-sided rubber contact seals (2RS), this bearing is fully protected and maintenance-free. The robust seals form an absolute barrier against harsh contaminants like water, dirt, and road debris, while effectively sealing in the internal, high-performance grease. This ensures the longest possible operational life, even in the most challenging environments. With precise dimensions of 42 x 76 x 40 mm (and an outer ring width of 37 mm), the DAC42760040/37 RICH is a reliable, high-quality direct interchange for numerous OE and interchange references, including the Chrysler 4293185, guaranteeing a perfect, dependable fit.


Key Performance Advantages:

  • Maximum Protection (2RS): Contact seals provide the highest level of defense against water and fine contamination.
  • High Load Capacity: Double row configuration maintains wheel stability under heavy combined radial and axial forces.
  • Rigid Performance: Angular contact design ensures precise shaft guidance and superior system rigidity.
  • OE Interchangeability: Trusted replacement for critical OE parts such as Chrysler 4293185 and SKF BAHB309796BA.

Transparency Note

The DAC42760040/37 bearing is manufactured by RICH in China to meet stringent quality and dimensional standards, ensuring reliable interchangeability and performance.


Data sheet

Inner Diameter
42
Outer Diameter
76
Width
40
Weight
0,689
Ball Rows
Double Row
Category
Double Row Angular-Contact Ball Bearing
