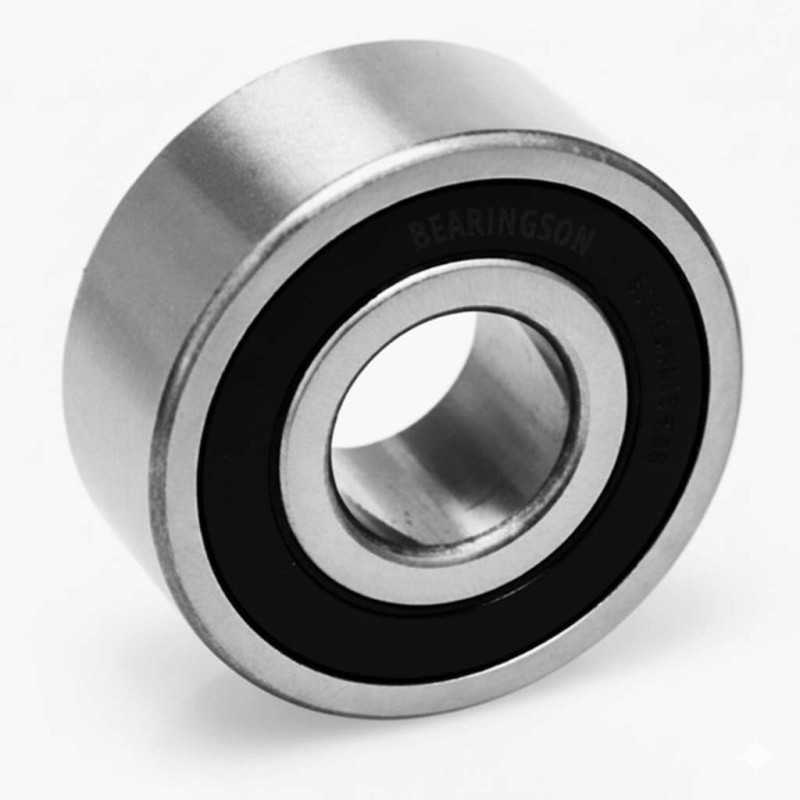

5205-2RS C3 RICH 25x52x20,6

5205-2RS C3 RICH – Double Row Angular Contact Ball Bearing – 25 x 52 x 20.6 mm

OE Reference:

• JOHN DEERE: AZ49176
• JOHN DEERE: AZ64070
• JOHN DEERE: DE19311

Technical Specifications:

• Type: Double row angular contact ball bearing
• Brand: RICH
• Model Designation: 5205-2RS C3
• Inner Diameter (d): 25 mm
• Outer Diameter (D): 52 mm
• Width (B): 20.6 mm
• Internal Clearance: C3 (Greater than normal)
• Cage Material: Polyamide
• Sealing: Double-sided rubber contact seals (2RS)
• Weight: 0.191 kg
• Country of Origin: China

Performance Characteristics:

• Load Capability: Double row configuration allows the bearing to accommodate high radial loads and axial loads in both directions with high mechanical rigidity.
• Thermal Management: Designed with C3 internal clearance to support thermal expansion during operation, reducing the risk of internal stress and premature wear.
• Sealing Protection: Equipped with high-quality 2RS contact seals to ensure internal lubricant retention while providing a barrier against dust and moisture in agricultural environments.
• Material Efficiency: Features a lightweight polyamide cage for reduced friction and quieter operation, optimized for John Deere agricultural machinery specifications.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
