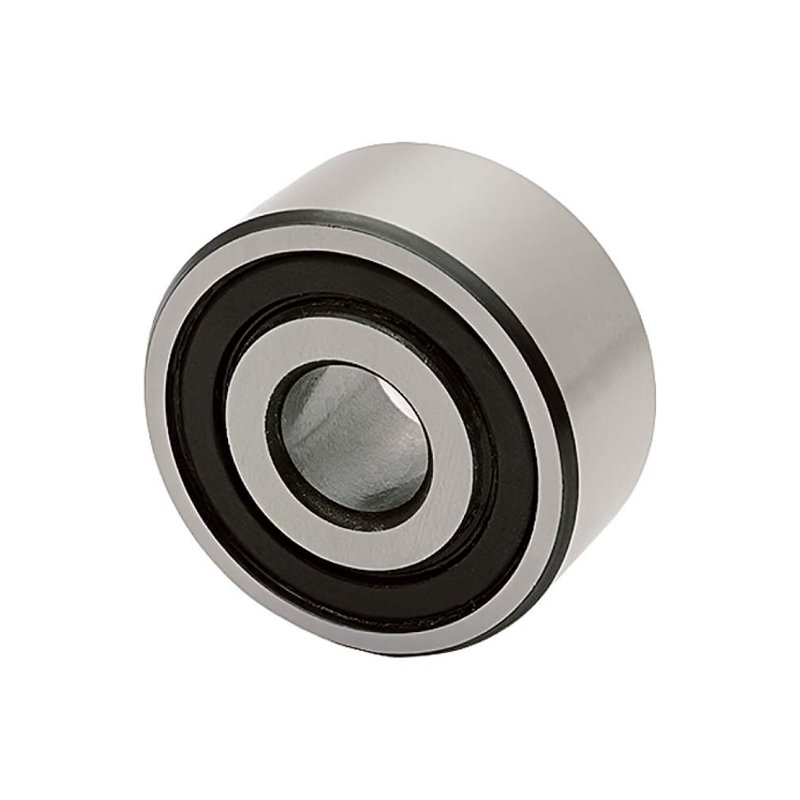

SS 3305 2RS RICH 25x62x25,4 SS-3305-2RS RICH
zoom_out_map
SS 3305 2RS RICH 25x62x25,4 SS-3305-2RS RICH

SS 3305 2RS RICH 25x62x25,4

The SS 3305.2RS RICH stainless steel double row angular-contact bearing (25 x 62 x 25.4 mm) offers high rigidity, handles heavy combined loads, and uses 2RS contact seals for superior protection.

RICH
SS-3305-2RS
€10.62
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

SS 3305.2RS RICH Double Row Angular-Contact Ball Bearing - Stainless Steel - 25 x 62 x 25.4 mm

Technical Specifications:

  • Product Type: Double Row Angular-Contact Ball Bearing
  • Model Designation: SS 3305.2RS
  • Brand: RICH
  • Product Feature: Stainless Steel
  • Bore Diameter (d): 25 mm
  • Outer Diameter (D): 62 mm
  • Width (B): 25.4 mm
  • Clearance: CN - Normal Clearance
  • Sealing: Double-sided rubber, contact type (2RS)
  • Weight: 0.345 kg
  • Country of Origin: China

The SS 3305.2RS RICH is a heavy-duty double row angular-contact ball bearing constructed from stainless steel, providing excellent resistance to rust and corrosion in challenging, wet, or chemically exposed environments. With dimensions of 25 mm bore, 62 mm outer diameter, and 25.4 mm width, this bearing is designed for high rigidity and stability. It is inherently self-retaining and capable of carrying high combined radial and axial loads due to its two rows of balls arranged back-to-back. The 2RS designation highlights the double-sided contact rubber seals that deliver maximum protection, effectively sealing the internal components and pre-filled lubricant against contaminants. The CN (Normal) clearance makes the SS 3305.2RS RICH suitable for a wide variety of industrial applications.

Key Performance Advantages:

  • Stainless Steel Construction: Provides long-term reliability and exceptional corrosion resistance.
  • Double Row Design: Delivers superior rigidity and a high capacity for combined radial and axial loads.
  • Double-Sided Seals (2RS): Ensures maximum protection against liquid and particle contamination.
  • Low Maintenance: Pre-lubricated and sealed for life, reducing operational downtime.
  • RICH Quality: A robust component for demanding, high-hygiene, or harsh applications.

Data sheet

Inner Diameter
25
Outer Diameter
62
Width
25,4
Weight
0,345
Ball Rows
Double Row
Sealing
Lip Seal On Both Sides
Clearance
CN (Normal)
Category
Double Row Angular-Contact Ball Bearing
