7200 2RS-TN RICH 10x30x9 | Contact Angle: 40°
Rating:
(0)
EUR €
- EUR €
- USD $

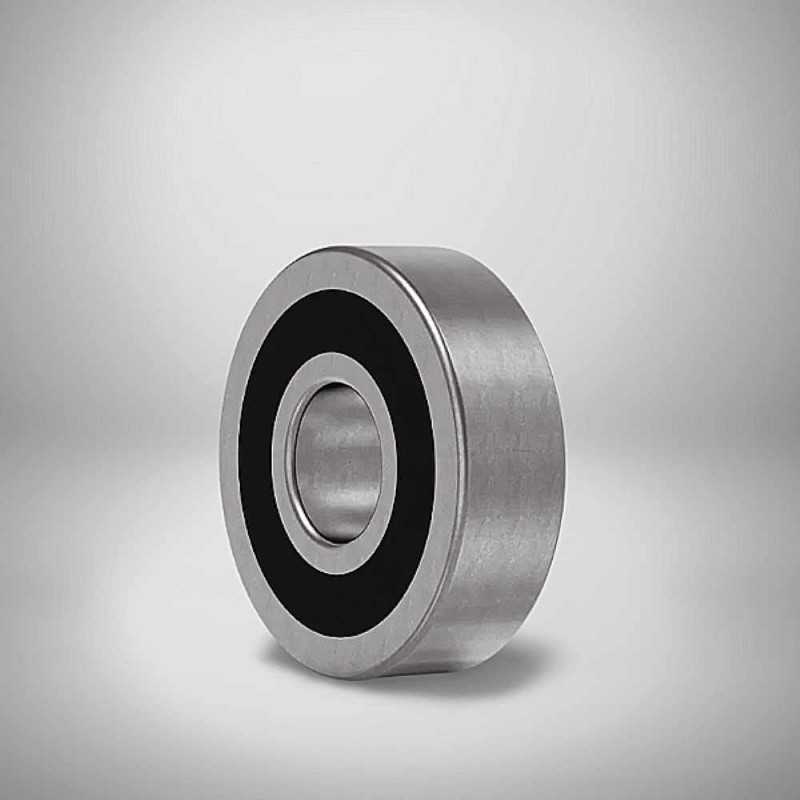

7200 2RS-TN RICH Single Row Angular-Contact Ball Bearing - 10 x 30 x 9 mm
Technical Specifications:
- Brand: RICH
- Type: Single Row Angular-Contact Ball Bearing
- Dimensions: 10 x 30 x 9 mm
- Cage: Polyamide
- Contact Angle: 40°
- Grease: Yes
- Sealing: Double-sided contact rubber seals (2RS)
- Weight: 0.033 kg
- Country of Origin: China
The 7200 2RS-TN RICH is a high-precision, single row angular-contact ball bearing designed to handle a combination of both radial and axial loads. The 40° contact angle is a key feature, making this bearing particularly effective at supporting high axial loads. With double-sided rubber seals (2RS), the bearing is protected against dust, dirt, and moisture, ensuring a longer service life in contaminated environments. The polyamide cage (TN) provides a lightweight yet durable solution, making the bearing well-suited for high-speed applications. As it comes pre-greased, it is a maintenance-free solution for many applications. This RICH bearing's ability to manage combined forces and operate at high speeds makes it an excellent choice for a wide range of industrial and automotive systems where reliable performance and protection from contaminants are essential.
Key Performance Advantages:
- High Axial Load Capacity: The 40° contact angle allows for efficient handling of significant axial forces.
- Versatile Load Management: Capable of withstanding combined radial and axial loads simultaneously.
- High-Speed Capability: The lightweight polyamide cage enables operation at high speeds.
- Maintenance-Free: Pre-greased and sealed for life, reducing the need for lubrication.
- Enhanced Protection: Double seals protect internal components from contaminants and moisture.
Data sheet
Inner Diameter
10
Outer Diameter
30
Width
9
Weight
0,033
Ball Rows
Single Row
Sealing
Lip Seal On Both Sides
Cage
Polyamide Cage
