5204 2RS C3 RICH 20x47x20,6 5204-2RS-C3 RICH
zoom_out_map
5204 2RS C3 RICH 20x47x20,6 5204-2RS-C3 RICH

5204 2RS C3 RICH 20x47x20,6

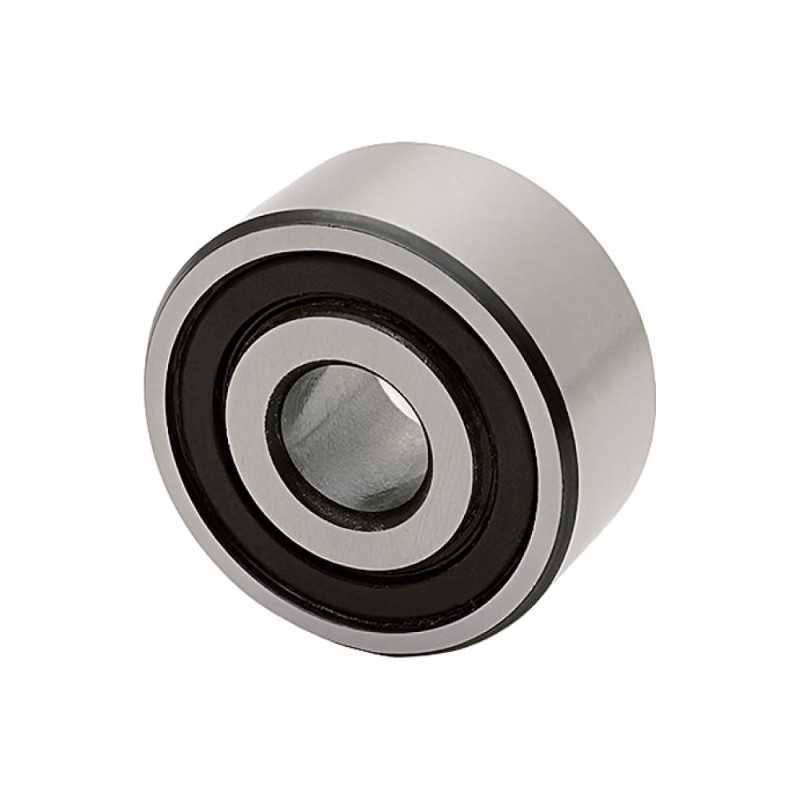

The 5204.2RS.C3 RICH Double Row Angular Contact Bearing (20x47x20.6 mm) features **2RS contact seals** and **C3 clearance**, ideal for contaminated, high-temperature applications.

RICH
5204-2RS-C3
€2.31
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

5204.2RS.C3 RICH Double Row Angular Contact Ball Bearing - 2RS Sealed C3 Clearance - 20 x 47 x 20.6 mm

Technical Specifications:

  • Brand: RICH
  • Type: Double Row Angular Contact Ball Bearing
  • Model: 5204.2RS.C3
  • Inner Diameter (d): 20 mm
  • Outer Diameter (D): 47 mm
  • Width (B): 20.6 mm
  • Dimensions: 20 x 47 x 20.6 mm
  • Clearance: C3 - Greater than normal
  • Sealing: Double-sided rubber, contact (2RS)
  • Cage Material: Steel
  • Weight: 0.16 kg
  • Country of Origin: China

Key Performance Advantages:

  • Superior Contaminant Protection: **2RS contact seals** ensure maximum defense against dirt, moisture, and retain internal grease.
  • Thermal Compensation (C3): **C3 clearance** is crucial for operating effectively in high-temperature or high-speed applications.
  • Bidirectional Load Handling: Capable of supporting heavy radial loads and substantial **axial forces in both directions**.
  • High Rigidity: Double row design provides excellent stiffness for precise shaft guidance in critical machinery.

Data sheet

Inner Diameter
20
Outer Diameter
47
Width
20,6
Ball Rows
Double Row
Sealing
Lip Seal On Both Sides
Cage
Steel
Clearance
C3 (Greater than Normal)
Category
Double Row Angular-Contact Ball Bearing
