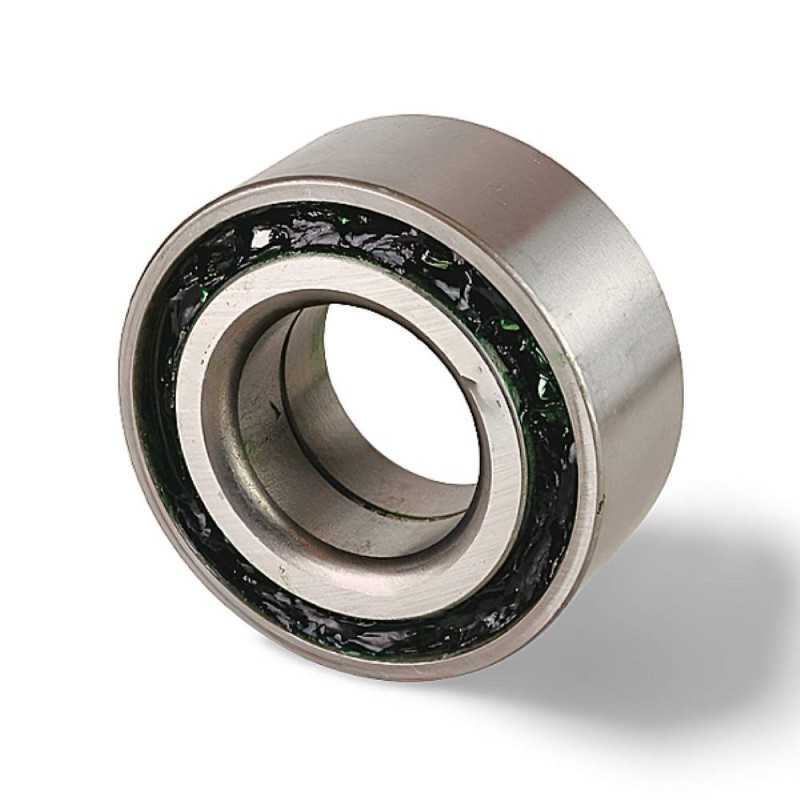

DAC4072W335 RICH Double Row Angular-Contact Ball Bearing - 40 x 72 x 36 mm (Open, Polyamide Cage)
The DAC4072W335 RICH is a high-quality double row angular-contact ball bearing, precisely engineered to accommodate both radial and axial loads in both directions. This type of bearing is particularly well-suited for applications demanding high rigidity and accurate shaft guidance, thanks to its angular contact geometry that ensures superior performance under combined loading conditions. It features an open design (no seals or shields), making it suitable for applications where lubrication can be supplied externally or where contaminants are not a concern. The bearing incorporates a polyamide cage, which offers benefits such as reduced friction, lower noise, and good performance at high speeds. Its dimensions are a 40 mm bore diameter, 72 mm outer diameter, and a width of 36 mm, with an outer ring width (C) of 33 mm. It has a weight of 0.515 kg. This product is manufactured in China by RICH.
Key Specifications:
- Type: Double Row Angular-Contact Ball Bearing
- Dimensions: 40 mm bore diameter x 72 mm outer diameter x 36 mm width
- Weight: 0.515 kg
- Outer Ring Width (C): 33 mm
- Cage: Polyamide
- Sealing: None (Open)
- Country of Origin: China
- Brand: RICH
Key Advantages:
- Manages both radial and axial loads in both directions.
- Provides high rigidity and precise shaft guidance.
- Optimized for superior performance under combined loads.
- Polyamide cage for reduced friction and noise.
- Open design for applications with external lubrication or clean environments.
- Suitable for a wide range of industrial and automotive applications.
Data sheet
Inner Diameter
40
Outer Diameter
72
Width
36
Weight
0,515
Cage
Polyamide Cage
Category
Double Row Angular-Contact Ball Bearing
