SS 7305 B-TV RICH 25x62x17

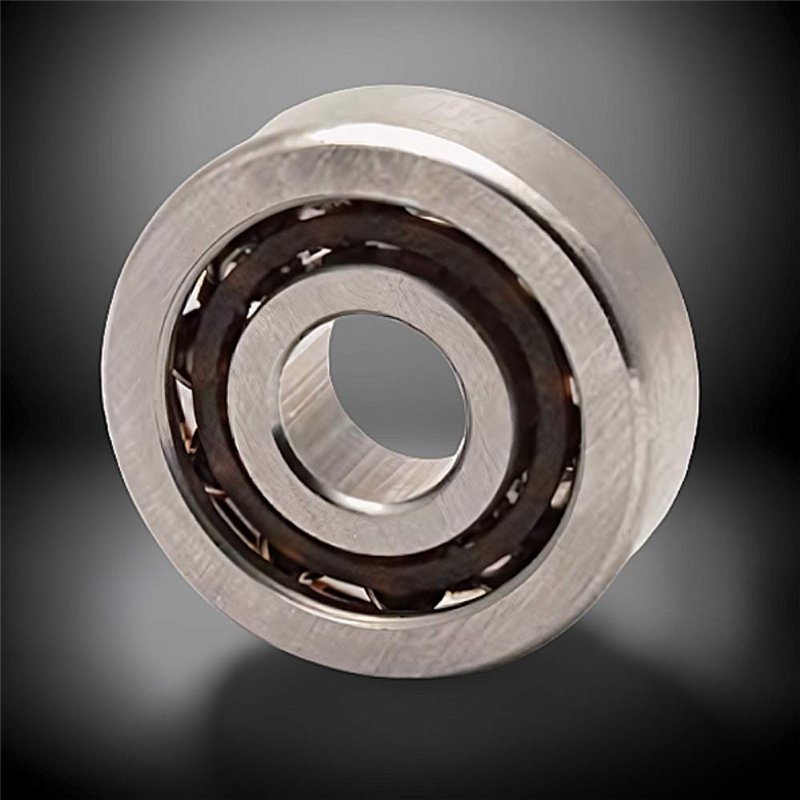

The SS 7305 B-TV RICH Angular Contact Bearing (25x62x17 mm) is **stainless steel** (SS) with a **40° contact angle (B)** and **polyamide cage (TV)**, optimized for high axial loads in corrosive environments.

RICH
SS7305-B-TV
€5.79
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

SS 7305 B-TV RICH Single Row Angular Contact Ball Bearing - Stainless Steel 40° Polyamide Cage - 25 x 62 x 17 mm

Technical Specifications:

  • Brand: RICH
  • Type: Single Row Angular Contact Ball Bearing
  • Model: SS 7305 B-TV
  • Inner Diameter (d): 25 mm
  • Outer Diameter (D): 62 mm
  • Width (B): 17 mm
  • Dimensions: 25 x 62 x 17 mm
  • Product Feature: Stainless Steel (SS)
  • Contact Angle: 40° (B - High Axial Load)
  • Cage Material: Polyamide (TV)
  • Sealing: None
  • Weight: 0.229 kg
  • Country of Origin: China

Key Performance Advantages:

  • Corrosion Resistance: **Stainless steel (SS)** construction provides maximum resistance to rust and moisture.
  • High Axial Thrust: **40° contact angle (B)** is optimized for applications requiring very high unidirectional axial load support.
  • High-Speed Performance: Lightweight **polyamide cage (TV)** ensures low friction and reliable operation at elevated speeds.
  • Precision and Rigidity: Ideal for applications requiring precise shaft guidance and stiff bearing support in challenging environments.

Data sheet

Inner Diameter
25
Outer Diameter
62
Width
17
Weight
0,229
Ball Rows
Single Row
Cage
Polyamide Cage
Category
Single Row Angular-Contact Ball Bearing
