3303 2RS RICH 17x47x22,2

The 3303.2RS RICH double row angular contact bearing (17 x 47 x 22.2 mm) features rubber seals, CN clearance, and a steel cage. Designed for high combined load capacity.

RICH
33032RS
€2.74
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

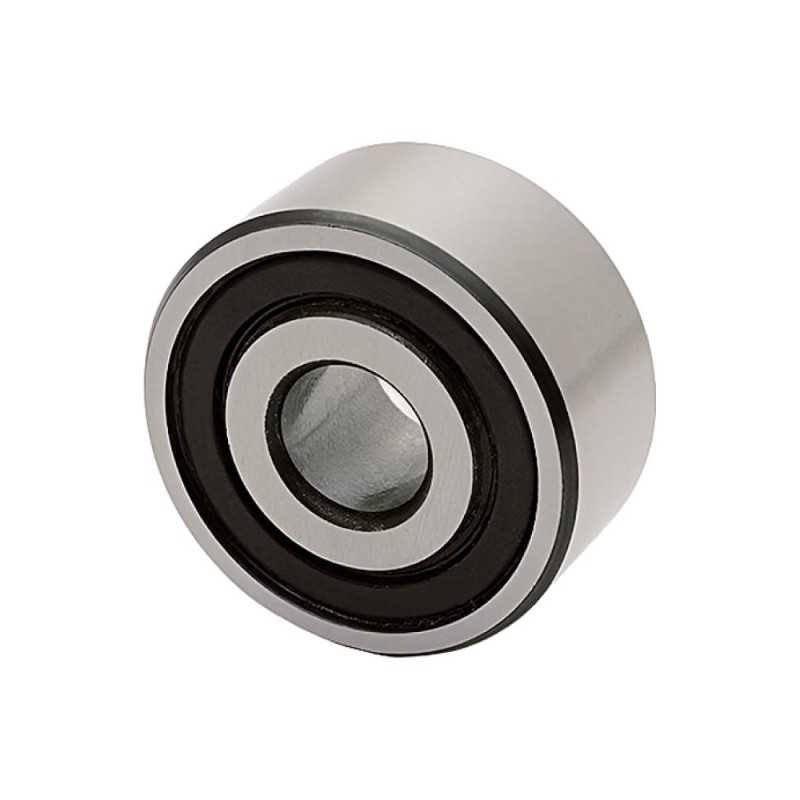

3303.2RS RICH Double Row Angular Contact Ball Bearing - 17 x 47 x 22.2 mm

The 3303.2RS RICH is a double row angular contact ball bearing designed to accommodate combined radial and axial loads in both directions. This bearing has key dimensions of 17 mm inner diameter, 47 mm outer diameter, and a width of 22.2 mm. It features a steel cage, has CN (normal) clearance, and double-sided rubber contact seals. It weighs 0.177 kg and is made in China. This bearing is known to be used in equipment from CLAAS, with Known OE Reference: 243311.0 (CLAAS). Double row angular contact ball bearings provide rigid bearing arrangements and can handle higher loads compared to single row bearings.

Key Specifications:

  • Bearing Type: Double Row Angular Contact Ball Bearing
  • Model: 3303.2RS RICH
  • Inner Diameter (d):** 17 mm
  • Outer Diameter (D):** 47 mm
  • Width (B):** 22.2 mm
  • Cage Material:** Steel
  • Clearance:** CN (Normal)
  • Sealing:** Double-sided Rubber, Contact
  • Weight:** 0.177 kg
  • Country of Origin:** China
  • Known OE Reference:** 243311.0 (CLAAS)

Key Features:

  • Double Row Design:** Provides increased load capacity and rigidity.
  • Angular Contact:** Suitable for combined radial and axial loads in both directions.
  • Steel Cage:** Offers high strength and durability.
  • Double-Sided Rubber Seals:** Protects against contaminants.
  • Versatile Application:** This bearing is known to be used in equipment from CLAAS.
  • Manufacturing Origin:** Made in China.

Data sheet

Inner Diameter
17
Outer Diameter
47
Width
22,2
Ball Rows
Double Row
Clearance
CN (Normal)
